Product Model

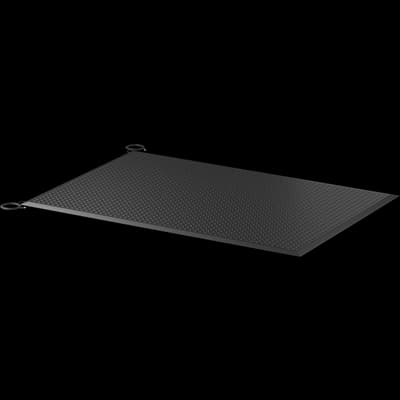

ASK-1T4.4-NP 1x1.5
Selling Points
- 1Enhanced Safety Features: Equipped with a molded 35 mm ramp rail and safeguarded area of 1000 x 1500 mm.
- 2Advanced Cable Connectivity: Includes 2 x 5 m cables with M8 male connectors for reliable operation.
- 3Certified for Safety: TÜV Nord and cULus certified for maximum safety integrity.
- 4Durable Construction: Made from polyurethane material with a mechanical life of over 10 million load shiftings.
- 5Easy Installation: Simple setup with clear instructions and minimal cabling requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable Length | 5 m | Product Net Depth / Length | 1000 mm |
Product Net Height | 10 mm | Product Net Width | 1500 mm |
Product Net Weight | 38 kg | Color | Black |
Connection Configuration | Depends on safety mat base price | Maximum Control Current DC | 100 mA |
Rated Operational Voltage | 24 V DC | Size | 1 x 1.5 meter |
Technical Information | Mechanical life > 10 million load shiftings | Time Range | With Sentry < 20 ms With Pluto S < 30 ms With Pluto B or D < 40 ms in normal condition and < 70 ms at fault condition - Add 30 ms with function block "BigMat" |
Ambient Air Temperature | Operation -10 ... 55 °C | Degree of Protection | IP65 |
Material | Polyurethane | eClass | V11.0 : 27273590 |
ETIM 7 | EC002887 - Pressure sensitive protective device | ETIM 8 | EC002887 - Pressure sensitive protective device |
ETIM 9 | EC002887 - Pressure sensitive protective device | Object Classification Code | B |
Manufacturer ID | 2TLA076310R1200 |
Specifications may be subject to change without notice
