Product Model

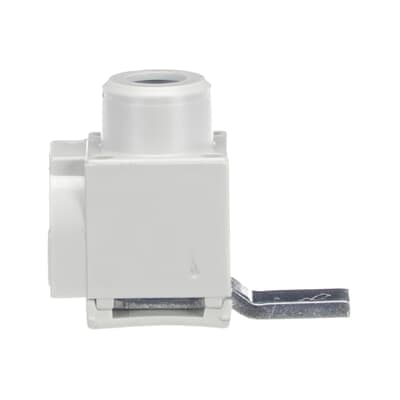

AST50/15
Selling Points
- 1High-Quality Material: Made from durable materials for long-lasting performance.
- 2CE Certified: Meets stringent CE standards for safety and reliability.
- 3Specifically Designed: Tailored for S200/S200P series miniature circuit breakers.
- 4Feeder Straight Type: Suitable for 1/0 AWG conductor applications.
- 5Compact Dimensions: Measures 50mm in height and 100mm in length for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suitable For | S200 F200 DDA200 | Suitable for Product Class | Miniature Circuit Breakers Residual Current Circuit Breakers Residual Current Circuit Breakers with Overcurrent Protection |
Rated Operational Current (Ie) | 80 A | Product Net Weight | 0.022 kg |
ETIM 8 | EC000001 - Busbar terminal | ETIM 9 | EC000001 - Busbar terminal |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
CN8 | 8536 90 10 | UNSPSC | 39121432 |
eClass | V11.0 : 27141146 | IDEA Granular Category Code (IGCC) | 4604 >> Busbar terminal |
Manufacturer ID | 2CDL200001R5015 |
Specifications may be subject to change without notice
