Product Model

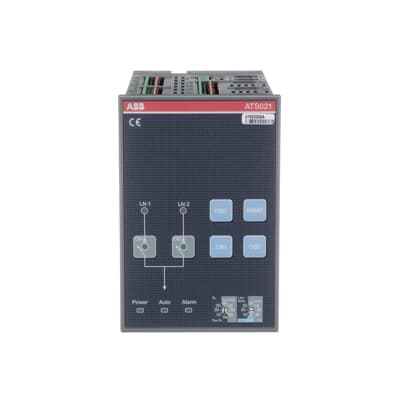

ATS021 AUTO.TRAN.SWITCH MULTI VOLTAGE
Selling Points
- 1Reliable Power Supply: Ensures continuous power supply by monitoring and switching between main and emergency lines.
- 2Multi-Voltage Compatibility: Supports a wide range of voltages (up to 480 VAC) and frequencies (50Hz, 60Hz).
- 3Advanced Logic: Features multi-function logic for managing both non-priority lines and bus-tie circuit-breakers.
- 4No Auxiliary Power Supply Required: Operates directly from line voltages, eliminating the need for an auxiliary power supply.
- 5Compliance with IEC and EN 60947 Standards: Meets stringent safety and quality standards for power installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 160 mm | Product Net Height | 110 mm |
Product Net Depth / Length | 240 mm | Product Net Weight | 1.248 kg |
Product Main Type | Accessories for Emax 2, Accessories for Tmax XT | Product Name | Accessory |
Product Type | Accessory | Suitable For | E1.2, E2.2, E4.2, E6.2 |
Suitable for Product Class | SACE Emax 2 | Configuration Type | Loose or configurable |
Order Multiple | 1 piece | Standards | IEC |
ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology | ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
Object Classification Code | Q | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
eClass | V11.1 : 27371392 | Manufacturer ID | 1SDA065523R1 |
Specifications may be subject to change without notice
