Product Model

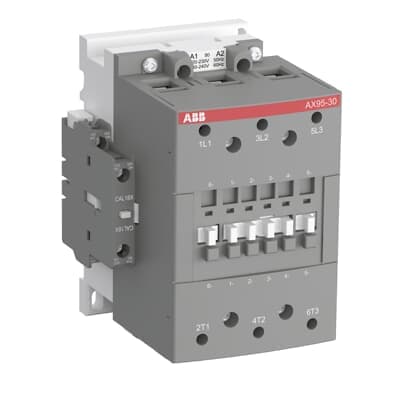

AX95-30-11-88
Selling Points
- 1High Current Rating: Handles up to 145 A at 690 V with a conventional free-air thermal current of 145 A at 40°C.
- 2Versatile Voltage Options: Operates at 220/230/240 V, 380/400 V, 415 V, 440 V, and 500 V.
- 3Durable Design: Withstands 300 cycles per hour of electrical switching frequency and 3600 cycles per hour of mechanical switching frequency.
- 4Enhanced Safety Features: Meets EU Directive 2011/65/EU RoHS requirements and has a rated insulation voltage of 8 kV.
- 5Compact and Efficient: Measures 140 mm x 170 mm x 130 mm, making it a space-saving solution for industrial control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 102 mm | Product Net Depth / Length | 123.5 mm |
Product Net Height | 148 mm | Product Net Weight | 1.9 kg |
Number of Main Contacts NO | 3 | Number of Main Contacts NC | 0 |
Number of Auxiliary Contacts NO | 1 | Number of Auxiliary Contacts NC | 1 |
Rated Operational Voltage | Main Circuit 1000 V | Rated Frequency (f) | Main Circuit 60 Hz |
Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Π= 40 °C 145 A | Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 145 A (690 V) 55 °C 135 A (690 V) 60 °C 135 A (690 V) 70 °C 115 A |
Rated Operational Current AC-3 (Ie) | (415 V) 55 °C 96 A (440 V) 55 °C 93 A (500 V) 55 °C 80 A (690 V) 55 °C 65 A (380 / 400 V) 55 °C 96 A (220 / 230 / 240 V) 55 °C 96 A | Rated Operational Power AC-3 (Pe) | (415 V) 55 kW (440 V) 55 kW (500 V) 55 kW (690 V) 55 kW (380 / 400 V) 45 kW (220 / 230 / 240 V) 25 kW |
Rated Breaking Capacity AC-3 | 8 x Ie AC-3 | Rated Making Capacity AC-3 | 10 x Ie AC-3 |
Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 800 A at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 160 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 350 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1320 A at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 500 A | Maximum Electrical Switching Frequency | 300 cycles per hour |
Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V | Rated Impulse Withstand Voltage (Uimp) | 8 kV |
Mechanical Durability | 10 million | Maximum Mechanical Switching Frequency | 3600 cycles per hour |
Coil Operating Limits | (acc. to IEC 60947-4-1) Uc (at θ ⤠70 °C) | Rated Control Circuit Voltage (Uc) | 50 Hz 230 ... 240 V 60 Hz 240 ... 260 V |
Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40 | Terminal Type | Cable Clamp |
Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 55 °C Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C Close to Contactor for Storage -40 ... 70 °C | Maximum Operating Altitude Permissible | Without Derating 3000 m |
Object Classification Code | Q | ETIM 7 | EC000066 - Power contactor, AC switching |
ETIM 8 | EC000066 - Power contactor, AC switching | ETIM 9 | EC000066 - Power contactor, AC switching |
eClass | V11.0 : 27371003 | UNSPSC | 39121529 |
IDEA Granular Category Code (IGCC) | 4755 >> Contactors | Manufacturer ID | 1SFL431074R8811 |
Specifications may be subject to change without notice
