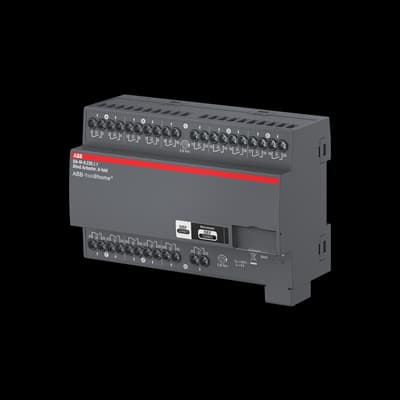

Product Model
BA-M-8.230.1.1
Selling Points
- 1Control up to 8 blinds or roller shutters with a single device.
- 2Supports 230V AC and 24V AC drives for reliable motor activation.
- 3Integrated with ABB-free@home system for seamless automation.
- 4Includes bus terminal for easy coupling to the free@home Bus.
- 5Suitable for various blind types, including Venetian blinds and roller blinds.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | IP20 | Data Sheet, Technical Information | 2CKA000073B5514 |
Special Functions | Switching | Number of Outputs | 8 |
Number of LEDs | 1 | Compatible Bus Systems | free@home (TP) |
Product Range | free@home | Manual Operation | No |
Number of Batteries | 0 | Width in Number of Modular Spacings | 8.0 |
Product Net Width | 140 mm | Product Net Height | 90 mm |
Product Net Depth / Length | 63.5 mm | Product Net Weight | 0.502 kg |
Built-In Depth (t2) | 63.5 mm | Dimension Diagram | 2CDC072027F0017 |
ETIM 9 | EC001330 - Shutting actuator for bus system | eClass | V11.0 : 27143128 |
UNSPSC | 39121801 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | Manufacturer ID | 2CDG510029R0011 |
Specifications may be subject to change without notice
