Product Model
BC-ZLBM/ZHBM00/XLP00
Selling Points
- 1Fast and tool-less installation of current transformers.
- 2Up to 20% savings in panel depth with reduced depth options.
- 3Easy and safe replacement of fuses with a simple naming system.
- 4Easy connection for all types of cables with integrated V-Clamps and universal terminal bolts.
- 5Withstands current up to 30 kA and operates in temperatures up to 40°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Environmental Information | N/A | Product Net Width | 25 mm |
Product Net Height | 15 mm | Product Net Depth / Length | 25 mm |

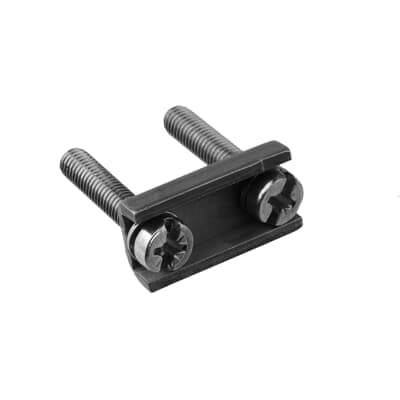

Product Net Weight | 0.040 kg | Accessory Type | Connection clamp |
Mounting Type | Bridge Clamps | Special Functions | Not Included |
Tightening Torque | 3,5 N·m | Tightening Torque | 3,5 N·m |
Object Classification Code | Q | ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology | UNSPSC | 39120000 |
eClass | V11.1 : 27371392 | WEEE Category | Product Not in WEEE Scope |
E-Number (Finland) | 3601157 | E-Number (Norway) | 1687170 |
E-Number (Sweden) | 3171986 | Manufacturer ID | 1SEP407733R0001 |
Specifications may be subject to change without notice
