Product Model

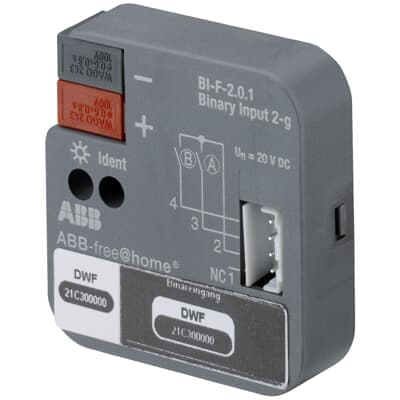

BI-F-2.0.1
Selling Points
- 1Compact design for flush-mounting in 60 mm installation boxes.
- 2Compatible with ABB-free@home bus systems, no additional power supply needed.
- 3Two channels can be connected with conventional push-buttons or auxiliary contacts.
- 4Ideal for integrating conventional switches and devices like window contacts.
- 5CE marking according to EMC and low-voltage guidelines for safety and efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | IP20 | Data Sheet, Technical Information | 2CDG941152P0002 |
Number of LEDs | 1 | Number of Digital Inputs | 2 |
Number of Inputs | Analog (0 ... 10 V / 4 ... 20 mA) 2 | Compatible Bus Systems | free@home (TP) |
Product Range | free@home | Manual Operation | No |
Number of Batteries | 0 | Product Net Width | 39 mm |
Product Net Height | 12 mm | Product Net Depth / Length | 40 mm |
Product Net Weight | 0.043 kg | Dimension Diagram | 9AKK108464A0432 |
ETIM 9 | EC000688 - Binary input for bus system | eClass | V11.0 : 27143121 |
Object Classification Code | A | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Consumer | Manufacturer ID | 2CDG510002R0011 |
Specifications may be subject to change without notice
