Product Model

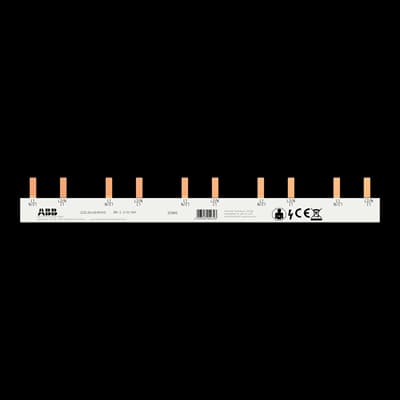

BR-S 2/10/10H
Selling Points
- 1Rated at 4 kV (1.2/50µs) for superior electrical safety.
- 2Available in 0.75 to 2.5 mm² for versatile applications.
- 3Withstands up to 10,000 operations, ensuring long-lasting performance.
- 4Compact dimensions (85 x 69 x 8.8 mm) for easy installation.
- 5Suitable for MCBs S200 series, RCDs F200, and more, ensuring broad compatibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Operational Voltage | 400 V | Rated Conditional Short-Circuit Current (Inc) | 25 kA |
Rated Uninterrupted Current (Iu) | 63 A | Pitch | 17.8 |
Number of Poles | 2 | Number of Phases | 2 |
Connection Type | Pin | Number of Batteries | 0 |
Rated Cross-Section | 10 mm² | Width in Number of Modular Spacings | 10.0 |
Product Net Width | 0.026 mm | Product Net Height | 0.008 mm |
Product Net Depth / Length | 210 mm | Product Net Weight | 0.026 kg |
ETIM 8 | EC000215 - Phase busbar | ETIM 9 | EC000215 - Phase busbar |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
CN8 | 8536 90 10 | UNSPSC | 39121614 |
eClass | V11.0 : 27142207 | Manufacturer ID | 2CDL824001R1010 |
Specifications may be subject to change without notice
