Product Model

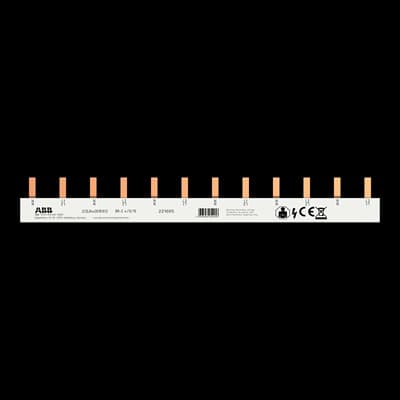

BR-S 4/12/10
Selling Points
- 1Safe and Efficient Cross-Connection: ABB BR-S 4/12/10 enables the safe and fast cross-connection of MCBs, RCCBs, and other electrical devices.
- 2Versatile Utilization Categories: Suitable for AC14 (1A/400V, 2A/230V) and DC12/DC13 (1A/220V, 1.5A/110V) utilization categories.
- 3High Thermal Current Capacity: Conventional free air thermal current up to 10A, ensuring reliable performance in various environments.
- 4Robust Mechanical Service Life: Designed to withstand 10,000 operations, providing long-lasting reliability in electrical installations.
- 5Compact Dimensions: Compact dimensions (85 x 69 x 8.8 mm) make it easy to integrate into various electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Operational Voltage | 400 V | Rated Conditional Short-Circuit Current (Inc) | 25 kA |
Rated Uninterrupted Current (Iu) | 63 A | Pitch | 17.8 |
Number of Poles | 4 | Number of Phases | 4 |
Connection Type | Pin | Number of Batteries | 0 |
Rated Cross-Section | 10 mm² | Width in Number of Modular Spacings | 12.0 |
Product Net Width | 0.026 mm | Product Net Height | 0.014 mm |
Product Net Depth / Length | 210 mm | Product Net Weight | 0.026 kg |
ETIM 8 | EC000215 - Phase busbar | ETIM 9 | EC000215 - Phase busbar |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
CN8 | 8538 90 99 | UNSPSC | 39121614 |
eClass | V11.0 : 27142207 | Manufacturer ID | 2CDL844001R1012 |
Specifications may be subject to change without notice
