Product Model

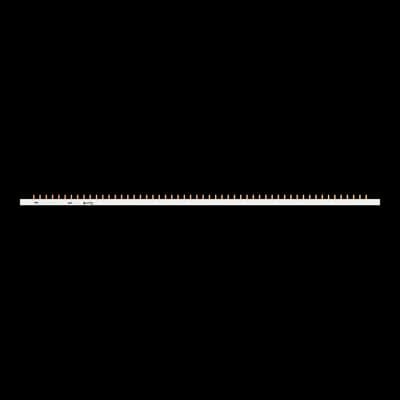

BR-S 4/54/10
Selling Points
- 1Advanced Signal Contact Function: Provides real-time information about automatic tripping of protection devices.
- 2High Thermal Current Ratings: Supports up to 10 A in free air, ensuring reliable operation under various conditions.
- 3Versatile Compatibility: Suitable for MCBs S200 series, S300P, SN201, RCDs F200, DS200, and more.
- 4Durable Construction: Meets IEC/EN 60068-2-6 standards for vibration resistance and has a mechanical service life of 10,000 operations.
- 5Easy Installation: Available in various configurations with easy mounting options, including left and right side installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Operational Voltage | 400 V | Rated Conditional Short-Circuit Current (Inc) | 25 kA |
Rated Uninterrupted Current (Iu) | 63 A | Pitch | 17.8 |
Number of Poles | 4 | Number of Phases | 4 |
Connection Type | Pin | Number of Batteries | 0 |
Rated Cross-Section | 10 mm² | Width in Number of Modular Spacings | 54.0 |
Product Net Width | 0.008 mm | Product Net Height | 0.03 mm |
Product Net Depth / Length | 1016 mm | Product Net Weight | 0.53 kg |
ETIM 8 | EC000215 - Phase busbar | ETIM 9 | EC000215 - Phase busbar |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
CN8 | 8538 90 99 | UNSPSC | 39121614 |
eClass | V11.0 : 27142207 | Manufacturer ID | 2CDL844001R1054 |
Specifications may be subject to change without notice
