Product Model

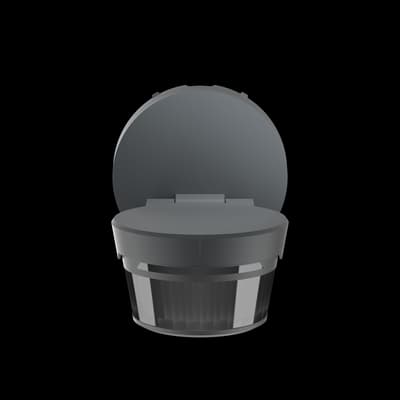

BW-A4.1-135
Selling Points
- 14-channel wired movement detector for indoor and outdoor areas.
- 2Automatic switching of free@home actuators based on movement and brightness.
- 3Includes a twilight/brightness sensor and temperature sensor.
- 4High-quality lens for optimal detection with adjustable detection range.
- 5Integrated dismounting protection and interference suppression.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Ambient Air Temperature | Operation -25 ... +55 °C | Degree of Protection | IP55 |
Function | Brightness sensor Temperature sensor | Number of Channels | 4 |
Compatible Bus Systems | free@home (TP) | Product Range | free@home |
Minimum Switching Time | Switch-On 10 second [unit of time] | Sensor Detection Range | 280 ° Frontal 16 m Lateral 16 m |
Product Net Width | 110 mm | Product Net Height | 124.4 mm |
Product Net Depth / Length | 157.75 mm | Product Net Weight | 294.3 g |
ETIM 9 | EC001582 - Movement sensor for bus system | eClass | V11.0 : 27143144 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
Manufacturer ID | 2CKA006220A0913 |
Specifications may be subject to change without notice
