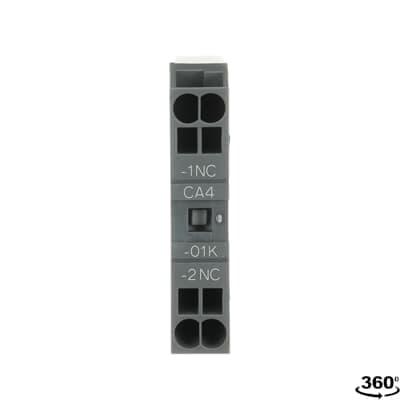

Product Model
CA4-01K
Selling Points
- 1Front-mounted design for easy installation.
- 2Equipped with push-in spring terminals for secure connections.
- 3Compatible with AF(C)09(Z)(B)...96 contactors and NF(C)(Z)(B) contactor relays.
- 4Rated for 690V and 50/60 Hz frequency.
- 5Ideal for operating auxiliary circuits in standard industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 10 mm | Product Net Depth / Length | 39.5 mm |
Product Net Height | 45 mm | Product Net Weight | 0.012 kg |
Number of Auxiliary Contacts NO | 0 | Number of Auxiliary Contacts NC | 1 |
Standards | IEC/EN 60947-5-1, UL 60947-5-1, CSA C22.2 No. 60947-5-1-14 | Rated Operational Voltage | Auxiliary Circuit 690 V |
Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz | Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Π= 40 °C 16 A |
Rated Operational Current AC-15 (Ie) | (500 V) 2 A (690 V) 2 A (24 / 127 V) 6 A (220 / 240 V) 4 A (400 / 440 V) 3 A | Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 140 A for 1 s 100 A |
Maximum Electrical Switching Frequency | (AC-15) 1200 cycles per hour (DC-13) 900 cycles per hour | Rated Operational Current DC-13 (Ie) | (24 V) 6 A / 144 W (48 V) 2.8 A / 134 W (72 V) 1 A / 72 W (110 V) 0.55 A / 60 W (125 V) 0.55 A / 69 W (220 V) 0.27 A / 60 W (250 V) 0.27 A / 68 W (400 V) 0.15 A / 60 W (500 V) 0.13 A / 65 W (600 V) 0.1 A / 60 W |
Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 690 V acc. to UL/CSA 600 V | Rated Impulse Withstand Voltage (Uimp) | 6 kV |
Maximum Mechanical Switching Frequency | 3600 cycles per hour | Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.5 ... 2.5 mm² Flexible with Insulated Ferrule 1/2x 0.5 ... 1.5 mm² Flexible 1/2x 0.5 ... 2.5 mm² Rigid Solid 1/2x 1 ... 2.5 mm² |
Wire Stripping Length | Auxiliary Circuit 10 mm | Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
Terminal Type | Push-in Spring Terminals | Suitable For | AF09 AF09Z AF12 AF12Z AF16 AF16Z AF26 AF26Z AF30 AF30Z AF38 AF38Z AF40 AF52 AF65 AF80 AF96 AFC09 AFC12 AFC16 AFC26 AFC30 AFC38 AFC40 AFC52 AFC65 AFC80 AFC96 AF09B AF09ZB AF12B AF12ZB AF16B AF16ZB AF26B AF26ZB AF30B AF30ZB AF38B AF38ZB AF40B AF52B AF65B AF80B AF96B NF22E NFZ22E NF31E NFZ31E NF40E NFZ40E NFC22E NFC31E NFC40E NFZB22E NFB22E NFZB31E NFB31E NFZB40E NFB40E |
Connecting Capacity Auxiliary Circuit UL/CSA | Rigid Solid 1/2x 18-14 AWG | Object Classification Code | K |
ETIM 7 | EC000041 - Auxiliary contact block | ETIM 8 | EC000041 - Auxiliary contact block |
ETIM 9 | EC000041 - Auxiliary contact block | eClass | V11.0 : 27371302 |
UNSPSC | 39121522 | IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
E-Number (Finland) | 3708029 | E-Number (Sweden) | 3210643 |
Manufacturer ID | 1SBN010160R1001 |
Specifications may be subject to change without notice
