Product Model

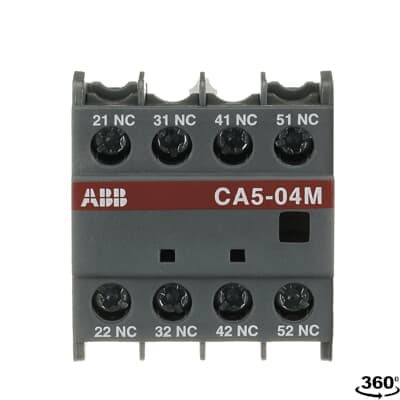

CA5-04M
Selling Points
- 1High mechanical durability with 10 million switching cycles.
- 2Robust insulation voltage up to 690 V, compliant with IEC 60947-5-1 and VDE 0110.
- 3Easy front mounting for convenient installation.
- 4Rated making and breaking capacity of 10 x Ie AC-15 for reliable performance.
- 5Compatible with various frequencies (50 Hz and 60 Hz) for versatile use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 43 mm | Product Net Depth / Length | 39 mm |
Product Net Height | 47 mm | Product Net Weight | 0.06 kg |
Number of Auxiliary Contacts NO | 0 | Number of Auxiliary Contacts NC | 4 |
Rated Operational Voltage | Auxiliary Circuit 690 V | Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
Rated Operational Current AC-15 (Ie) | (500 V) 2 A (690 V) 2 A (24 / 127 V) 6 A (220 / 240 V) 4 A (380 / 400 V) 3 A | Short-Circuit Protective Devices | Auxiliary Circuit - gG Type Fuses 10 A |
Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 140 A for 1 s 100 A | Maximum Electrical Switching Frequency | 1200 cycles per hour |
Rated Operational Current DC-13 (Ie) | (24 V) 6 A / 144 W (48 V) 2.8 A / 134 W (72 V) 1 A / 72 W (110 V) 0.55 A / 60 W (125 V) 0.55 A / 69 W (220 V) 0.30 A / 66 W (250 V) 0.3 / 75 W | Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 690 V acc. to UL/CSA 600 V |
Mechanical Durability | 10 million | Maximum Mechanical Switching Frequency | 3600 cycles per hour |
Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 | Terminal Type | Screw Terminals |
Suitable For | A9 A12 A16 A26 A30 A40 AL9 AL9Z AL12 AL12Z AL16 AL16Z AL26 AL30 AL40 TAL9 TAL12 TAL16 TAL26 TAL30 TAL40 UA16 UA26 UA30 | Object Classification Code | K |
ETIM 7 | EC000041 - Auxiliary contact block | ETIM 8 | EC000041 - Auxiliary contact block |
ETIM 9 | EC000041 - Auxiliary contact block | eClass | V11.0 : 27371302 |
UNSPSC | 39121522 | IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
E-Number (Finland) | 3709189 | Manufacturer ID | 1SBN010040R1104 |
Specifications may be subject to change without notice
