Product Model

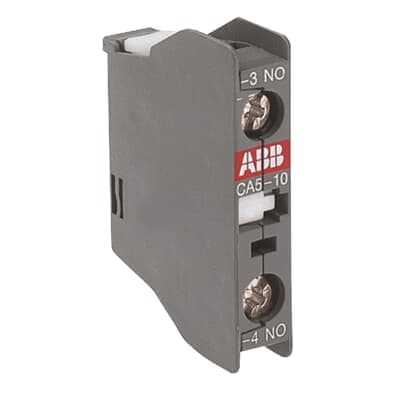

CA5-10
Selling Points
- 1Front mount design for easy installation.
- 21NO contact configuration for reliable switching.
- 3Rated for 690V, ensuring high voltage compatibility.
- 4Suitable for use with A9 to A40, T9, and other contactors.
- 5Meets EU Directive 2011/65/EU RoHS standards for environmental compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 11 mm | Product Net Depth / Length | 32.5 mm |
Product Net Height | 47 mm | Product Net Weight | 0.014 kg |
Number of Auxiliary Contacts NO | 1 | Number of Auxiliary Contacts NC | 0 |
Rated Operational Voltage | Auxiliary Circuit 690 V | Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
Rated Operational Current AC-15 (Ie) | (500 V) 2 A (690 V) 2 A (24 / 127 V) 6 A (220 / 240 V) 4 A (380 / 400 V) 3 A | Short-Circuit Protective Devices | Auxiliary Circuit - gG Type Fuses 10 A |
Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 140 A for 1 s 100 A | Maximum Electrical Switching Frequency | 1200 cycles per hour |
Rated Operational Current DC-13 (Ie) | (24 V) 6 A / 144 W (48 V) 2.8 A / 134 W (72 V) 1 A / 72 W (110 V) 0.55 A / 60 W (125 V) 0.55 A / 69 W (220 V) 0.30 A / 66 W (250 V) 0.3 / 75 W | Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 690 V acc. to UL/CSA 600 V |
Mechanical Durability | 10 million 3 million | Maximum Mechanical Switching Frequency | 3600 cycles per hour |
Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 | Terminal Type | Screw Terminals |
Suitable For | AF45 AF50 AF63 AF75 AF95B GAF75 A9 A12 A16 A26 A30 A40 A45 A50 A63 A75 A95 A110 AL9 AL9Z AL12 AL12Z AL16 AL16Z AL26 AL30 AL40 AE45 AE50 AE63 AE75 TAL9 TAL12 TAL16 TAL26 TAL30 TAL40 TAE45 TAE50 TAE75 GA75 GAE75 UA16 UA26 UA30 UA50 UA63 UA75 UA95 UA110 UA16RA UA26RA UA30RA UA50RA UA63RA UA75RA UA95RA UA110RA UAF75RA UAF95RA UAF110RA N22E N31E N40E NL22E NLZ22E NL31E NLZ31E NL40E NLZ40E TNL22E TNL31E TNL40E | Object Classification Code | K |
ETIM 7 | EC000041 - Auxiliary contact block | ETIM 8 | EC000041 - Auxiliary contact block |
ETIM 9 | EC000041 - Auxiliary contact block | eClass | V11.0 : 27371302 |
UNSPSC | 39121500 | Manufacturer ID | 1SBN010010W1010 |
Specifications may be subject to change without notice
