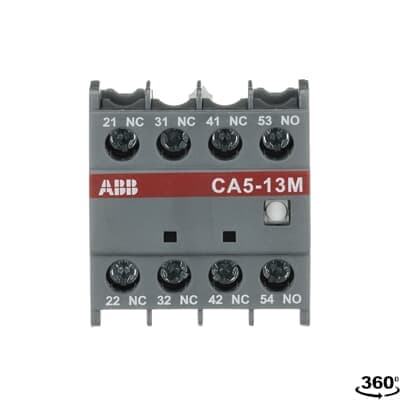

ABB CA5-13M Auxiliary Contact Block - High-Performance Solution

Selling Points

1High-Performance Design: Equipped with screw terminals for reliable connections.
2Versatile Compatibility: Suitable for A9, A12, A16, A26, A30, A40, and more contactors.
3Industrial-Grade Durability: Rated for 690 VAC and 50/60 Hz frequency, ensuring robust operation.
4Efficient Contact Arrangement: Includes 1 N.O. and 3 N.C. instantaneous contacts for precise control.
5Comprehensive Technical Support: Available from authorized distributors like Proax for seamless integration and maintenance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product Net Width	43 mm	Product Net Depth / Length	39 mm
Product Net Height	47 mm	Product Net Weight	0.06 kg
Number of Auxiliary Contacts NO	1	Number of Auxiliary Contacts NC	3
Rated Operational Voltage	Auxiliary Circuit 690 V	Rated Frequency (f)	Auxiliary Circuit 50 / 60 Hz
Rated Operational Current AC-15 (Ie)	(500 V) 2 A (690 V) 2 A (24 / 127 V) 6 A (220 / 240 V) 4 A (380 / 400 V) 3 A	Rated Short-time Withstand Current Low Voltage (Icw)	for 0.1 s 140 A for 1 s 100 A
Rated Operational Current DC-13 (Ie)	(24 V) 6 A / 144 W (48 V) 2.8 A / 134 W (72 V) 1 A / 72 W (110 V) 0.55 A / 60 W (125 V) 0.55 A / 69 W (220 V) 0.30 A / 66 W (250 V) 0.3 / 75 W	Rated Insulation Voltage (Ui)	acc. to IEC 60947-5-1 690 V acc. to UL/CSA 600 V
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20	Terminal Type	Screw Terminals
Suitable For	A9 A12 A16 A26 A30 A40 AL9 AL9Z AL12 AL12Z AL16 AL16Z AL26 AL30 AL40 TAL9 TAL12 TAL16 TAL26 TAL30 TAL40 UA16 UA26 UA30	Object Classification Code	K
ETIM 7	EC000041 - Auxiliary contact block	ETIM 8	EC000041 - Auxiliary contact block
ETIM 9	EC000041 - Auxiliary contact block	eClass	V11.0 : 27371302
UNSPSC	39121500	Manufacturer ID	1SBN010040R1113

Specifications may be subject to change without notice
