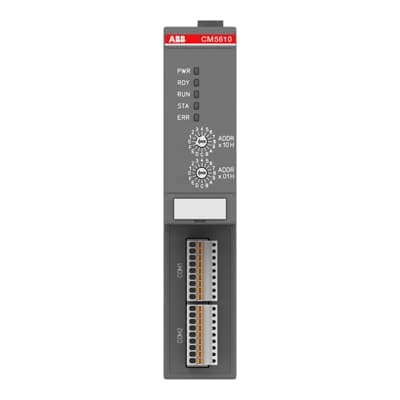

Product Model
CM5610-2RS
Selling Points
- 1Dual serial interfaces (RS232/RS485) for versatile communication.
- 2Configurable transmission rates from 9.6 kbit/s to 115.2 kbit/s.
- 3Isolated physical layer for enhanced data security.
- 4Compatible with AC500 and S500 systems for integrated solutions.
- 5Compact design with pluggable spring terminals for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Weight | 0.09 kg | Product Net Depth / Length | 62 mm |
Product Net Height | 135 mm | Product Net Width | 28 mm |
Gross Weight | 0.132 kg | Package Level 1 Depth / Length | 147 mm |
Package Level 1 Height | 40 mm | Package Level 1 Width | 78 mm |
Package Level 1 Units | 1 carton | Function | Selectable protocol. 2 serial interfaces RS232, RS485 |
Communication Interface | Serial | Number of Hardware Interfaces | Industrial Ethernet 0 Other 0 Parallel 0 RS-232 0 RS-422 0 RS-485 0 Serial TTY 0 USB 0 Wireless 0 RS-232 / 485 2 |
Data Transmission Rate | 187.5 kbit/s | Product Main Type | CM5610 |
Product Name | Distributed Automation PLCs | eClass | 27-24-22-08 |
ETIM 8 | EC001423 - PLC communication module | UNSPSC | 32151705 |
WEEE B2C / B2B | Business To Business | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Manufacturer ID | 1SAP176000R0020 |
Specifications may be subject to change without notice
