Product Model

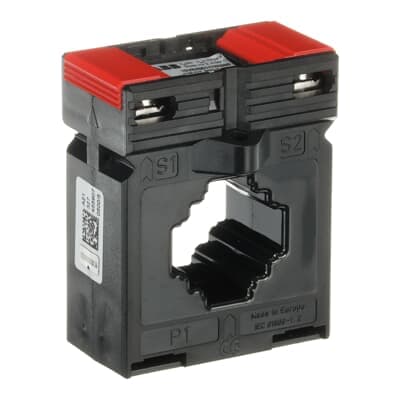

CM-CT 500/5
Selling Points
- 1High Precision: Class 1 precision ensures accurate measurements.
- 2Reliable Operation: Designed for long-lasting performance in various environments.
- 3Easy Installation: Plug-in design with snap-on mounting for DIN rail available.
- 4Comprehensive Protection: Insulating protective cap and bar fastening screws included.
- 5Compliance with Standards: Meets IEC/EN 61869-1 and IEC/EN 61869-2 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 61 mm | Product Net Height | 78.5 mm |
Product Net Depth / Length | 48 mm | Product Net Weight | 0.208 kg |
Function | Current transformer | Standards | IEC/EN 63000 IEC/EN 61869-1 IEC/EN 61869-2 |
Object Classification Code | T | ETIM 7 | EC002048 - Current transformer |
ETIM 8 | EC002048 - Current transformer | ETIM 9 | EC002048 - Current transformer |
eClass | V11.0 : 27210902 | UNSPSC | 39121032 |
E-Number (Norway) | 4187326 | Manufacturer ID | 1SVR450117R5300 |
Specifications may be subject to change without notice
