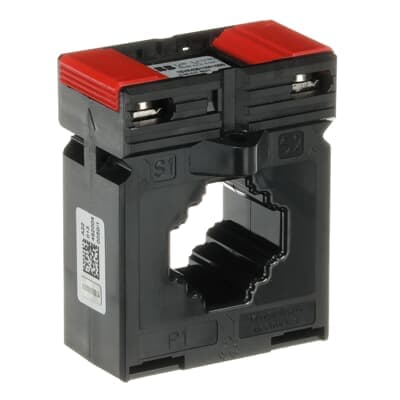

Product Model
CM-CT 75/1
Selling Points
- 1Precision Class 1 Measurement: Offers high accuracy and reliability in industrial applications.
- 2Rated Primary Current of 75 A: Suitable for a wide range of electrical monitoring needs.
- 3Secondary Rated Current of 1 A: Provides precise secondary current measurement.
- 4Burden of 1.5 VA: Efficient operation with minimal power loss.
- 5Snap-On Mounting for DIN Rail: Easy installation and integration into existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 61 mm | Product Net Height | 78.5 mm |
Product Net Depth / Length | 48 mm | Product Net Weight | 0.31 kg |
Function | Current transformer | Standards | IEC/EN 63000 IEC/EN 61869-1 IEC/EN 61869-2 |
Object Classification Code | T | ETIM 7 | EC002048 - Current transformer |
ETIM 8 | EC002048 - Current transformer | ETIM 9 | EC002048 - Current transformer |
eClass | V11.0 : 27210902 | UNSPSC | 39121032 |
E-Number (Norway) | 4187311 | Manufacturer ID | 1SVR450116R1100 |
Specifications may be subject to change without notice
