Product Model

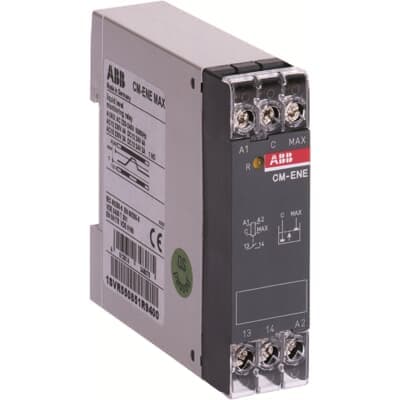

CM-ENE MAX
Selling Points
- 1Reliable overflow protection for conductive fluids.
- 2Compact design with a 22.5 mm housing width.
- 3Operates with a rated control supply voltage of 220-240 V AC.
- 4Features a 1 n/o output contact for precise monitoring.
- 5Meets international standards including CAN/CSA C22.2 No.14 and IEC/EN 63000.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 22.5 mm | Product Net Height | 78 mm |
Product Net Depth / Length | 78.5 mm | Product Net Weight | 0.106 kg |
Function | Filling monitoring | Sub-Function | Overflow protection |
Number of Electrodes | 2 | Measuring Range | 0 ... 100 k⦠|
Rated Control Supply Voltage (Us) | 24 V AC | Rated Frequency (f) | Supply Circuit 50/60 Hz |
Output | 1 n/o contact | Terminal Type | Screw Terminals |
Rated Operational Current AC-12 (Ie) | (230 V) 4 A | Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
Rated Operational Current DC-12 (Ie) | (24 V) 4 A | Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
Rated Impulse Withstand Voltage (Uimp) | Measuring Circuit / Output Circuit 4 kV Supply Circuit / Measuring Circuit 4 kV Supply Circuit / Output Circuit 4 kV | Rated Insulation Voltage (Ui) | Measuring Circuit / Output Circuit 250 V Supply Circuit / Measuring Circuit 250 V Supply Circuit / Output Circuit 250 V |
Degree of Protection | Housing IP50 Terminals IP20 | Short-Circuit Protective Devices | Output Circuit NO - F Type Fuses 10 A |
Connecting Capacity | Flexible with Ferrule 2x 0.75 ... 1.5 mm² Flexible 2x 1 ... 1.5 mm² Rigid 2x 0.75 ... 1.5 mm² | Tightening Torque | 0.6 ... 0.8 N·m |
Wire Stripping Length | 10 mm | Mounting Position | 1 ... 6 |
Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL 508 |
Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC | Contact Rating UL/CSA | B300 |
Connecting Capacity UL/CSA | Flexible with Ferrule 2x 18-16 AWG Flexible 2x 18-16 AWG Rigid 2x 18-16 AWG | Tightening Torque UL/CSA | 7.08 in·lb |
Ambient Air Temperature | Operation -20 ... +60 °C Storage -40 ... +85 °C | Maximum Operating Altitude Permissible | Without Derating 2000 m |
Object Classification Code | B | ETIM 7 | EC001447 - (Fill) level monitoring relay |
ETIM 8 | EC001447 - (Fill) level monitoring relay | ETIM 9 | EC001447 - (Fill) level monitoring relay |
eClass | V11.0 : 27371813 | UNSPSC | 39122331 |
E-Number (Finland) | 2712851 | E-Number (Norway) | 4187269 |
E-Number (Sweden) | 3860806 | Manufacturer ID | 1SVR550855R9400 |
Specifications may be subject to change without notice
