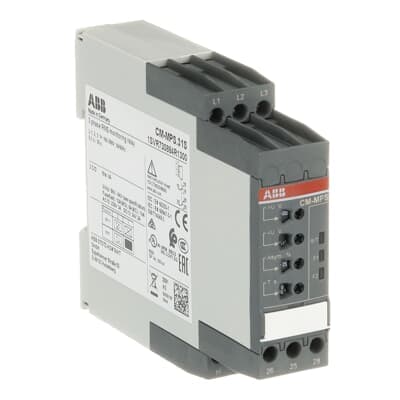

Product Model
CM-MPS.31S
Selling Points
- 1Advanced Phase Monitoring: Detects phase sequence, over/undervoltage, and phase unbalance.
- 2Adjustable Thresholds: Allows for customizable threshold settings for precise monitoring.
- 3Flexible Connectivity: Supports screw terminals with double-chamber cage connection terminals.
- 4Durable Construction: Meets IP50 housing and IP20 terminal standards for robust protection.
- 5Versatile Mounting Options: Compatible with DIN rail mounting (TH35-15 and TH35-7.5) for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 22.5 mm | Product Net Height | 85.6 mm |
Product Net Depth / Length | 103.7 mm | Product Net Weight | 0.142 kg |
Function | Phase failure detection Phase sequence monitoring Over- and undervoltage monitoring Phase unbalance detection | Measuring Range | (L-L) 160 ... 300 V AC |
Time Range | 200 ms start-up delay 0 s or 0.1 ... 30 s tripping delay (ON or OFF) | Rated Control Supply Voltage (Us) | (L-L) 160 ... 300 V AC |
Rated Frequency (f) | Supply Circuit 50/60 Hz | Output | 2 c/o (SPDT) contacts |
Terminal Type | Screw Terminals | Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
Rated Operational Current AC-15 (Ie) | (230 V) 3 A | Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
Rated Operational Current DC-13 (Ie) | (24 V) 2 A | Minimum Switching Capacity | 24 V 10 mA |
Rated Impulse Withstand Voltage (Uimp) | Input Circuit 6 kV Output Circuit 4 kV | Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 600 V Output Circuit 1 / Output Circuit 2 300 V |
Degree of Protection | Housing IP50 Terminals IP20 | Overvoltage Category | III |
Pollution Degree | 3 | Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A Output Circuit NO - F Type Fuses 10 A |
Electrical Durability | AC-12 100000 cycle | Mechanical Durability | 30000000 cycle |
Connecting Capacity | Flexible with Ferrule 1x 0.5 ... 2.5 mm² Flexible with Ferrule 2x 0.5 ... 1.5 mm² Flexible with Insulated Ferrule 1x 0.5 ... 2.5 mm² Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² Flexible 1x 0.5 ... 2.5 mm² Flexible 2x 0.5 ... 1.5 mm² Rigid 1x 0.5 ... 4 mm² Rigid 2x 0.5 ... 2.5 mm² | Tightening Torque | 0.6 ... 0.8 N·m |
Wire Stripping Length | 8 mm | Recommended Screw Driver | 0.8 x 4 4.5 Pozidriv 1 |
Mounting Position | 1 ... 6 | Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 60255-27 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL 508 | Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
Contact Rating UL/CSA | B300 | Connecting Capacity UL/CSA | Flexible 1x 18-14 AWG Flexible 2x 18-16 AWG Rigid 1x 20-12 AWG Rigid 2x 20-14 AWG |
Tightening Torque UL/CSA | 7.08 in·lb | Pilot Duty UL/CSA | B300 |
Flammability According to UL94 | V-0 | Ambient Air Temperature | Operation -25 ... +60 °C Storage -40 ... +85 °C |
Maximum Operating Altitude Permissible | Without Derating 2000 m | Object Classification Code | B |
ETIM 7 | EC001441 - Phase monitoring relay | ETIM 8 | EC001441 - Phase monitoring relay |
ETIM 9 | EC001441 - Phase monitoring relay | eClass | V11.0 : 27371803 |
UNSPSC | 39122332 | E-Number (Finland) | 2712276 |
E-Number (Norway) | 4188134 | E-Number (Sweden) | 3860586 |
Manufacturer ID | 1SVR730884R1300 |
Specifications may be subject to change without notice
