Product Model

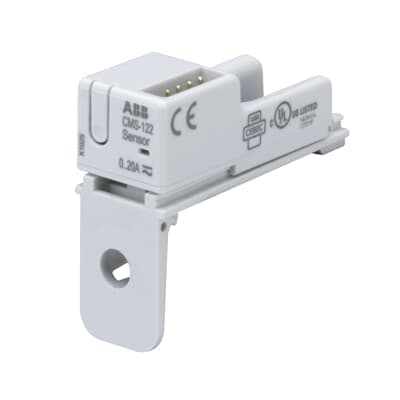

CMS-122LA
Selling Points
- 1High Precision Measurement: The CMS-122LA sensor provides accurate measurements with an accuracy of ≤±1% F.S. .
- 2Compact Design: Measuring just 17.4 mm in width, this sensor is designed to fit in minimal spaces, making it ideal for various applications .
- 3Easy Installation: Direct mounting and simple connection process ensure quick setup without the need for special tools .
- 4Versatile Current Measurement: Capable of measuring direct, alternating, or mixed currents up to 20 A, making it versatile for various electrical systems .
- 5Retrofittable and Upgradeable: The system can be easily extended or modified at any time due to its modular design, ensuring flexibility in system configuration .
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Compatibility | SCU100 & SCU200 | Frequency (f) | Rated Current 50 Hz |
Power Consumption (@P<span style="font-size:x-small;">cons</span>) | At Rated Load 0.18 W | Communication Interface | InSite bus(Flat cable) |
Accuracy | 1% FS | Measuring Range | 0.1â¦20 A |
Mounting Type | Surface Mounting | Sensor Type | Open-core (18 mm) |
Output | Other | Ambient Air Temperature | Operation -25 ... 70 °C |
Environmental Information | 2CCC481001D0202 | Product Net Width | 17.4 mm |
Product Net Height | 38.9 mm | Product Net Depth / Length | 41 mm |
Product Net Weight | 12 g | ETIM 8 | EC002580 - Flow monitoring equipment |
ETIM 9 | EC002580 - Flow monitoring equipment | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 90303900 |
eClass | V11.0 : 27210123 | Object Classification Code | P |
Manufacturer ID | 2CCA880227R0001 |
Specifications may be subject to change without notice
