Product Model

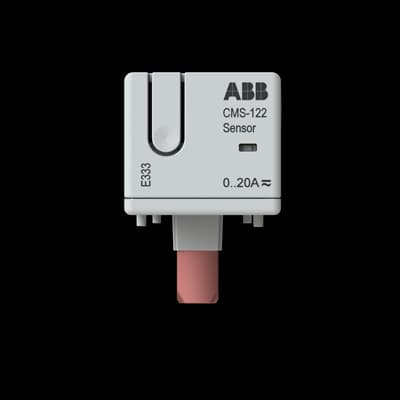

CMS-122PS
Selling Points
- 1Accurate Measurement: The CMS-122PS offers current accuracy of ≤±1% F.S., ensuring precise measurements in various applications.
- 2Compact Design: With dimensions of 17.4 x 41 x 26.5 mm, this sensor is highly compact and suitable for tight spaces.
- 3Versatile Installation: Easy to install on ABB installation devices with twin terminals, making it versatile for different setups.
- 4Wide Operating Range: Operates within a wide temperature range of -25°C to +70°C, making it suitable for various environments.
- 5High Reliability: Contactless measuring process ensures maximum system stability and minimizes potential sources of error.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Compatibility | SCU100 & SCU200 | Frequency (f) | Rated Current 50 Hz |
Power Consumption (@P<span style="font-size:x-small;">cons</span>) | At Rated Load 0.18 W | Communication Interface | InSite bus(Flat cable) |
Accuracy | 1% FS | Measuring Range | 0.1â¦20 A |
Mounting Type | Surface Mounting | Sensor Type | Open-core (18 mm) |
Output | Other | Ambient Air Temperature | Operation -25 ... 70 °C |
Environmental Information | 2CCC481001D0202 | Product Net Width | 17.4 mm |
Product Net Height | 26.5 mm | Product Net Depth / Length | 41 mm |
Product Net Weight | 12 g | ETIM 8 | EC002580 - Flow monitoring equipment |
ETIM 9 | EC002580 - Flow monitoring equipment | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
WEEE B2C / B2B | Business To Business | CN8 | 90303900 |
UNSPSC | 41111928 | eClass | V11.0 : 27210123 |
IDEA Granular Category Code (IGCC) | 6160 >> Current sensors | Object Classification Code | P |
Manufacturer ID | 2CCA880212R0001 |
Specifications may be subject to change without notice
