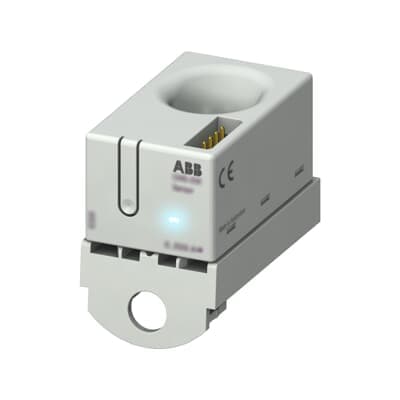

Product Model
CMS-202S8
Selling Points
- 1High accuracy with ≤±0.5% FS current accuracy.
- 2Compact 25mm solid-core sensor design for minimal space usage.
- 3Suitable for S800 installation devices with cage terminals.
- 4Digital measurement values transmitted via CMS-Bus interface.
- 5Operating temperature range of -25°C to +70°C for reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Compatibility | SCU100 & SCU200 | Rated Operational Voltage | 690 V AC 1500 V DC |
Frequency (f) | Rated Current 50 Hz | Power Consumption (@P<span style="font-size:x-small;">cons</span>) | At Rated Load 0.27 W |
Communication Interface | InSite bus(Flat cable) | Accuracy | 0.5% FS |
Measuring Range | 0.1â¦20 A | Mounting Type | Surface Mounting |
Sensor Type | Solid-core (25 mm) | Output | Other |
Ambient Air Temperature | Operation -25 ... 70 °C | Environmental Information | 2CCC481001D0202 |
Product Net Width | 26.5 mm | Product Net Height | 26.5 mm |
Product Net Depth / Length | 43 mm | Product Net Weight | 28 g |
ETIM 8 | EC002580 - Flow monitoring equipment | ETIM 9 | EC002580 - Flow monitoring equipment |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
CN8 | 90303900 | UNSPSC | 41111928 |
eClass | V11.0 : 27210123 | IDEA Granular Category Code (IGCC) | 6160 >> Current sensors |
Object Classification Code | P | Manufacturer ID | 2CCA880138R0001 |
Specifications may be subject to change without notice
