Product Model

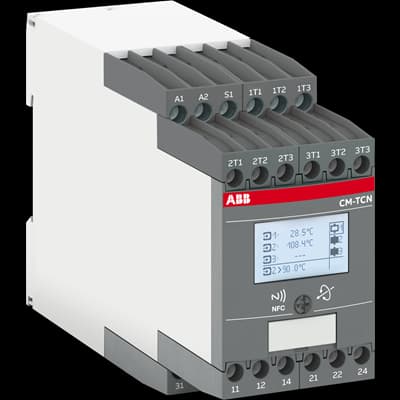

CM-TCN.012P
Selling Points
- 1Advanced Temperature Monitoring: The CM-TCN.012P monitors temperatures from -200 to 850°C, ensuring precise control in various industrial settings.
- 2Smart Connectivity: Equipped with Modbus RTU communication, this relay allows for real-time data transfer and remote configuration via ABB AbilityTM Energy and Asset Manager.
- 3Durable Design: Built with a robust housing and IP20 rating, it withstands harsh industrial environments and ensures reliable operation.
- 4User-Friendly Interface: Features an LCD display with a symbol-based menu structure for intuitive configuration and quick diagnosis of operational states.
- 5Enhanced Safety Features: Includes multiple alarm LEDs for overtemperature, undertemperature, and parameter errors, ensuring early detection of potential issues.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 45 mm | Product Net Height | 85.6 mm |
Product Net Depth / Length | 103.7 mm | Product Net Weight | 0.27 kg |
Function | Overtemperature monitoring Undertemperature monitoring Over- and undertemperature monitoring | Measuring Range | -200 ... +850 °C |
Sensor Type | PT100; PT1000; PTC; NTC; bimetal switch | Rated Control Supply Voltage (Us) | 24 ... 240 V AC/DC |
Rated Frequency (f) | Supply Circuit 50 Hz Supply Circuit 60 Hz Supply Circuit DC Hz | Output | 3 x 1 c/o contacts, configurable |
Terminal Type | Screwless Terminals | Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
Rated Operational Current AC-15 (Ie) | (230 V) 3 A | Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
Rated Operational Current DC-13 (Ie) | (24 V) 2 A | Minimum Switching Capacity | 12 V 100 mA |
Rated Impulse Withstand Voltage (Uimp) | Measuring Circuit / Output Circuit 6 kV Output Circuit 1 / Output Circuit 2 4 kV Supply Circuit / Measuring Circuit 6 kV Supply Circuit / Output Circuit 6 kV | Rated Insulation Voltage (Ui) | Measuring Circuit / Output Circuit 600 V Output Circuit 1 / Output Circuit 2 300 V Supply Circuit / Measuring Circuit 600 V Supply Circuit / Output Circuit 600 V |
Degree of Protection | Housing IP50 Terminals IP20 | Overvoltage Category | III |
Pollution Degree | 2 | Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A Output Circuit NO - F Type Fuses 10 A |
Electrical Durability | AC-12 100000 cycle | Mechanical Durability | 30000000 cycle |
Connecting Capacity | Flexible with Ferrule 2x 0.5 ... 1.5 mm² Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² Flexible 2x 0.5 ... 1.5 mm² Rigid 2x 0.5 ... 1.5 mm² | Wire Stripping Length | 8 mm |
Mounting Position | 1 ... 6 | Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC | Contact Rating UL/CSA | B300 |
Connecting Capacity UL/CSA | Flexible 2x 18-16 AWG Rigid 2x 20-16 AWG | Pilot Duty UL/CSA | B300 |
Ambient Air Temperature | Operation -25 ... +60 °C Storage -40 ... +85 °C | Maximum Operating Altitude Permissible | Without Derating 2000 m |
Object Classification Code | B | ETIM 7 | EC001446 - Temperature monitoring relay |
ETIM 8 | EC001446 - Temperature monitoring relay | ETIM 9 | EC001446 - Temperature monitoring relay |
eClass | V11.0 : 27371810 | UNSPSC | 39122331 |
E-Number (Norway) | 4187799 | Manufacturer ID | 1SVR760740R0120 |
Specifications may be subject to change without notice
