Product Model

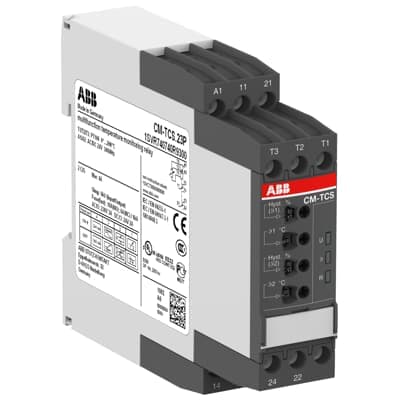

CM-TCS.23P
Selling Points
- 1The CM-TCS.23P monitors temperatures with a PT100 sensor, offering precise measurements within the range of 0 to +200°C.
- 2Built with 24V AC/DC supply voltage, this relay operates reliably in various environments, including industrial settings.
- 3Easily set two adjustable threshold values to monitor overtemperature, undertemperature, or temperature windows.
- 4Features Easy Connect Technology with push-in terminals for quick and tool-free mounting on DIN rail.
- 5Meets various international standards including UL 508, IEC/EN 61000-6-2, and CE, ensuring compliance and safety in your application.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 22.5 mm | Product Net Height | 85.6 mm |
Product Net Depth / Length | 103.7 mm | Product Net Weight | 0.127 kg |
Function | Overtemperature monitoring Undertemperature monitoring Over- and undertemperature monitoring | Measuring Range | 0 ... +200 °C |
Sensor Type | PT100 | Rated Control Supply Voltage (Us) | 24 V AC/DC |
Rated Frequency (f) | Supply Circuit 50 Hz Supply Circuit 60 Hz Supply Circuit DC | Output | 2 x 1 c/o or 1 x 2 c/o contacts, configurable |
Terminal Type | Screwless Terminals | Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
Rated Operational Current AC-15 (Ie) | (230 V) 3 A | Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
Rated Operational Current DC-13 (Ie) | (24 V) 2 A | Minimum Switching Capacity | 24 V 10 mA |
Rated Impulse Withstand Voltage (Uimp) | Measuring Circuit / Output Circuit 4 kV Output Circuit 1 / Output Circuit 2 4 kV Supply Circuit / Measuring Circuit 4 kV Supply Circuit / Output Circuit 4 kV | Rated Insulation Voltage (Ui) | Measuring Circuit / Output Circuit 300 V Output Circuit 1 / Output Circuit 2 300 V Supply Circuit / Measuring Circuit 300 V Supply Circuit / Output Circuit 300 V |
Degree of Protection | Housing IP50 Terminals IP20 | Overvoltage Category | III |
Pollution Degree | 3 | Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A Output Circuit NO - F Type Fuses 10 A |
Electrical Durability | AC-12 100000 cycle | Mechanical Durability | 30000000 cycle |
Connecting Capacity | Flexible with Ferrule 2x 0.5 ... 1.5 mm² Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² Flexible 2x 0.5 ... 1.5 mm² Rigid 2x 0.5 ... 1.5 mm² | Wire Stripping Length | 8 mm |
Mounting Position | 1 ... 6 | Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
Standards | CAN/CSA C22.2 No.60947-5-1 IEC/EN 60255-26 IEC/EN 60255-27 IEC/EN 61000-6-2 IEC/EN 61000-6-3 IEC/EN 63000 UL 60947-5-1 IEC/EN 60947-5-1 | Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
Contact Rating UL/CSA | B300 | Connecting Capacity UL/CSA | Flexible 2x 18-16 AWG Rigid 2x 20-16 AWG |
Pilot Duty UL/CSA | B300 | Ambient Air Temperature | Operation -40 ... +60 °C Storage -40 ... +85 °C |
Maximum Operating Altitude Permissible | Without Derating 2000 m | Object Classification Code | B |
ETIM 7 | EC001446 - Temperature monitoring relay | ETIM 8 | EC001446 - Temperature monitoring relay |
ETIM 9 | EC001446 - Temperature monitoring relay | eClass | V11.0 : 27371810 |
UNSPSC | 39122331 | E-Number (Finland) | 2712331 |
E-Number (Norway) | 4188175 | E-Number (Sweden) | 3860674 |
Manufacturer ID | 1SVR740740R9300 |
Specifications may be subject to change without notice
