Product Model

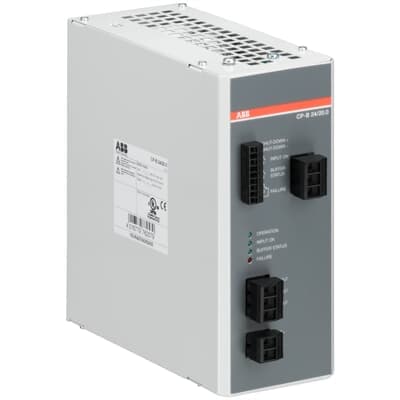

CP-B 24/20.0
Selling Points
- 1Utilizes advanced ultra-capacitors for efficient energy storage.
- 2Ensures a short-term uninterrupted power supply system with minimal maintenance.
- 3Expandable with up to 2 extension modules for longer buffering times.
- 4Operates within a wide temperature range (-20 to +60°C) and voltage tolerance (+2...-10%).
- 5Includes internal and external fuses for continuous short-circuit protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 84 mm | Product Net Height | 198 mm |
Product Net Depth / Length | 216 mm | Product Net Weight | 2.2 kg |
Function | Buffer module | Number of Phases | 1 |
Input Voltage (Uin) | 24 V DC | Rated Frequency (f) | DC |
Output Power | 480 W | Output Voltage (Uout) | 24 V DC |
Output Current | 20 A | Degree of Protection | Housing IP20 Terminals IP20 |
Pollution Degree | 2 | Connecting Capacity Input Circuit | Flexible with Ferrule 0.2 ... 4 mm² Flexible 0.2 ... 4.0 mm² Rigid 0.2 ... 6 mm² |
Connecting Capacity Output Circuit | Flexible with Ferrule 0.2 ... 4 mm² Flexible 0.2 ... 4.0 mm² Rigid 0.2 ... 6 mm² | Wire Stripping Length | Input Circuit 7 mm Output Circuit 7 mm |
Minimum Mounting Distance | Other Device Same Type, Vertical 80 mm | Mounting Position | 1 |
Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | Standards | CAN/CSA C22.2 No.107.1 IEC/EN 63000 EN 55011 IEC/EN 61000-6-2 IEC/EN 61000-6-4 IEC/EN 62040-2 UL 508 |
Connecting Capacity Input Circuit UL/CSA | Flexible with Ferrule 24-12 AWG Flexible 24-12 AWG Rigid 24-10 AWG | Connecting Capacity Output Circuit UL/CSA | Flexible with Ferrule 24-12 AWG Flexible 24-12 AWG Rigid 24-10 AWG |
Ambient Air Temperature | Operation -40 ... +60 °C Storage -40 ... +60 °C | Maximum Operating Altitude Permissible | Without Derating 2000 m |
Object Classification Code | C | ETIM 7 | EC002540 - DC-power supply |
ETIM 8 | EC002540 - DC-power supply | ETIM 9 | EC002540 - DC-power supply |
eClass | V11.0 : 27040701 | UNSPSC | 39121004 |
E-Number (Finland) | 2712389 | E-Number (Norway) | 6609482 |
Manufacturer ID | 1SVR427060R2000 |
Specifications may be subject to change without notice
