Product Model

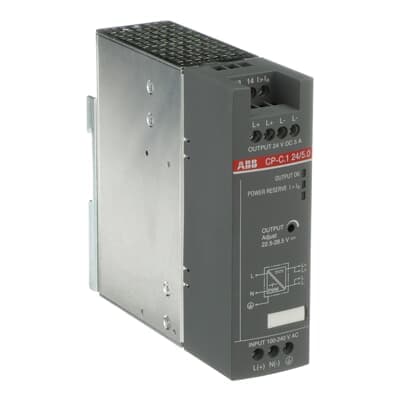

CP-C.1 24/5.0-C
Selling Points
- 1Wide input range: 85-264 V AC and 90-300 V DC.
- 2Adjustable output voltage: 22.5 to 28.5 V DC.
- 3High efficiency: Up to 93% efficiency with low power dissipation.
- 4Redundancy capability: Parallel operation up to 5 devices for increased power and redundancy.
- 5Advanced safety features: Open-circuit, overload, and short-circuit proof with integrated input fuse.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 40 mm | Product Net Height | 129.4 mm |
Product Net Depth / Length | 136 mm | Product Net Weight | 0.75 kg |
Function | Switch mode power supply | Number of Phases | 1 |
Rated Input Voltage (UIN) | 100 ... 240 V AC 90 ... 300 V DC | Input Voltage (Uin) | 85 ... 264 V AC 90 ... 300 V DC |
Typical Input Current | (115 V AC) 1.1 A (230 V AC) 0.6 A | Hold-up Time | (230 V AC) min. 50 ms |
Rated Frequency (f) | 50 / 60 Hz | Rated Frequency Limits | 45 ... 65 Hz |
Characteristic of Output | U/I characteristic curve with power reserve | Rated Output Power | 120 W |
Output Power | 120 W | Rated Output Voltage | 24 V DC |
Output Voltage (Uout) | 24 V DC | Rated Output Current | -25 °C ... +60 °C 5 A -40 °C ... +40 °C 7.5 A |
Output Current | 5 A | Output Current Maximum (Iout) | 7.5 A |
Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Output Circuit 4 kV Input Circuit / PE 4 kV Input Circuit / Relay Contact 4 kV Output Circuit / PE 0.5 kV Output Circuit 0.5 kV | Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V Input Circuit / PE 300 V Input Circuit / Relay Contact 300 V Output Circuit / PE 50 V |
Degree of Protection | Housing IP20 Terminals IP20 | Pollution Degree | 2 |
Connecting Capacity Input Circuit | Flexible with Ferrule 0.5 ... 2.5 mm² Flexible 0.5 ... 2.5 mm² Rigid 0.5 ... 4 mm² | Connecting Capacity Output Circuit | Flexible with Ferrule 0.5 ... 2.5 mm² Flexible 0.5 ... 2.5 mm² Rigid 0.5 ... 4 mm² |
Tightening Torque | Auxiliary Circuit 0.5 N·m Input Circuit 0.5 N·m Output Circuit 0.5 N·m | Wire Stripping Length | Auxiliary Circuit 8 mm Input Circuit 8 mm Output Circuit 8 mm |
Recommended Screw Driver | Input Circuit / Output Circuit PH1 Input Circuit / Output Circuit 0.8 x 4 | Minimum Mounting Distance | Electrical Conductive Board, Horizontal 25 mm Electrical Conductive Board, Vertical 25 mm Other Device Same Type, Horizontal 25 mm Other Device Same Type, Vertical 25 mm |
Mounting Position | Position 1 7 | Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
Standards | CAN/CSA C22.2 No.107.1 IEC/EN 63000 IEC/EN 60079-0 IEC/EN 60079-15 IEC/EN 60079-7 IEC/EN 61000-6-2 IEC/EN 61000-6-3 IEC/EN 61204 UL 508 UL 61010-1 UL 61010-2-201 IEC/EN 61010-1 | Connecting Capacity Input Circuit UL/CSA | Flexible with Ferrule 20-12 AWG Flexible 20-12 AWG Rigid 20-10 AWG |
Connecting Capacity Output Circuit UL/CSA | Flexible 20-12 AWG Rigid 20-10 AWG | Tightening Torque UL/CSA | Input Circuit 4.4 in·lb Output Circuit 4.4 in·lb |
Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +85 °C | Maximum Operating Altitude Permissible | 5000 m |
Resistance to Damp Heat acc. to IEC 60068-2-30 | Test Db: 55°C, 2 cycles | Resistance to Shock acc. to IEC 60068-2-27 | 30g 3 shocks 6 ms |
Resistance to Vibrations | ±0.15 mm 10 ... 58 Hz 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz | Object Classification Code | T |
ETIM 7 | EC002540 - DC-power supply | ETIM 8 | EC002540 - DC-power supply |
ETIM 9 | EC002540 - DC-power supply | eClass | V11.0 : 27040701 |
UNSPSC | 39121004 | E-Number (Finland) | 2712543 |
E-Number (Norway) | 6609412 | Manufacturer ID | 1SVR360563R2001 |
Specifications may be subject to change without notice
