Product Model

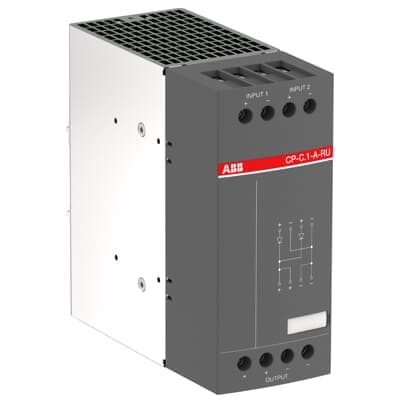

CP-C.1-A-RU-C
Selling Points
- 1True redundancy by 100% decoupling of two parallel connected power supplies.
- 2Supports up to 2 inputs each up to 20 A and 1 output up to 40 A.
- 3Compatible with CP-C.1 range power supplies for enhanced reliability.
- 4Input voltage range is 10 - 58 V DC, ensuring broad compatibility.
- 5Designed for harsh environments with coated PCBA and extended temperature range.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 56.4 mm | Product Net Height | 129.4 mm |
Product Net Depth / Length | 136 mm | Product Net Weight | 1.04 kg |
Function | Redundancy unit | Rated Input Voltage (UIN) | 12 ... 48 V DC |
Input Voltage (Uin) | 10 ... 58 V DC | Rated Frequency (f) | DC |
Rated Output Voltage | 12 ... 48 V DC | Output Voltage (Uout) | 10 ... 58 V DC |
Rated Output Current | 40 A | Output Current | 60 A |
Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 60 V | Degree of Protection | Housing IP20 Terminals IP20 |
Pollution Degree | 2 | Connecting Capacity Input Circuit | Flexible with Ferrule 2.5 ... 10 mm² Flexible 2.5 ... 10 mm² Rigid 2.5 ... 16 mm² |
Connecting Capacity Output Circuit | Flexible with Ferrule 2.5 ... 10 mm² Flexible 2.5 ... 10 mm² Rigid 2.5 ... 16 mm² | Tightening Torque | Input Circuit 1.2 N·m Output Circuit 1.2 N·m |
Wire Stripping Length | Input Circuit 10 mm Output Circuit 10 mm | Recommended Screw Driver | Input Circuit / Output Circuit 0.8 x 4 |
Minimum Mounting Distance | Electrical Conductive Board, Horizontal 25 mm Electrical Conductive Board, Vertical 25 mm Other Device Same Type, Horizontal 25 mm Other Device Same Type, Vertical 25 mm | Mounting Position | Position 1 7 |
Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | Standards | IEC/EN 63000 IEC/EN 60079-0 IEC/EN 60079-7 IEC/EN 61000-6-2 IEC/EN 61000-6-3 IEC/EN 61204 UL 61010-2-201 UL 61010-1 IEC/EN 61010-1 |
Connecting Capacity Input Circuit UL/CSA | Flexible 12-8 AWG Rigid 12-6 AWG | Connecting Capacity Output Circuit UL/CSA | Flexible 12-8 AWG Rigid 12-6 AWG |
Tightening Torque UL/CSA | Input Circuit 10.5 in·lb Output Circuit 10.5 in·lb | Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +85 °C |
Maximum Operating Altitude Permissible | 5000 m | Resistance to Damp Heat acc. to IEC 60068-2-30 | Test Db: 55°C, 2 cycles |
Resistance to Shock acc. to IEC 60068-2-27 | 30g 3 shocks 6 ms | Resistance to Vibrations | ±0.15 mm 10 ... 58 Hz 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz |
Object Classification Code | T | ETIM 7 | EC002540 - DC-power supply |
ETIM 8 | EC002540 - DC-power supply | ETIM 9 | EC002540 - DC-power supply |
eClass | V11.0 : 27040701 | UNSPSC | 39121004 |
E-Number (Finland) | 2712559 | Manufacturer ID | 1SVR360060R2001 |
Specifications may be subject to change without notice
