Product Model

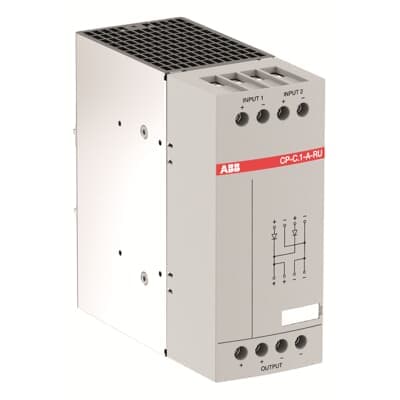

CP-C.1-A-RU-L
Selling Points
- 1True redundancy by 100% decoupling of two parallel connected power supplies.
- 2Two inputs each up to 20 A and one output up to 40 A.
- 3High system availability and operational reliability.
- 4Compact design with dimensions: 56.4 mm (width), 129.4 mm (height), and 136 mm (depth).
- 5Meets stringent standards including IEC/EN 63000, IEC/EN 61000-6-2, and UL 61010-1.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 56.4 mm | Product Net Height | 129.4 mm |
Product Net Depth / Length | 136 mm | Product Net Weight | 1.04 kg |
Function | Redundancy unit | Rated Input Voltage (UIN) | 12 ... 48 V DC |
Input Voltage (Uin) | 10 ... 58 V DC | Rated Frequency (f) | DC |
Rated Output Voltage | 12 ... 48 V DC | Output Voltage (Uout) | 10 ... 58 V DC |
Rated Output Current | 40 A | Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 60 V |
Degree of Protection | Housing IP20 Terminals IP20 | Pollution Degree | 2 |
Connecting Capacity Input Circuit | Flexible with Ferrule 2.5 ... 10 mm² Flexible 2.5 ... 10 mm² Rigid 2.5 ... 16 mm² | Connecting Capacity Output Circuit | Flexible with Ferrule 2.5 ... 10 mm² Flexible 2.5 ... 10 mm² Rigid 2.5 ... 16 mm² |
Tightening Torque | Input Circuit 1.2 N·m Output Circuit 1.2 N·m | Wire Stripping Length | Input Circuit 10 mm Output Circuit 10 mm |
Recommended Screw Driver | Input Circuit / Output Circuit 0.8 x 4 | Minimum Mounting Distance | Electrical Conductive Board, Horizontal 25 mm Electrical Conductive Board, Vertical 25 mm Other Device Same Type, Horizontal 25 mm Other Device Same Type, Vertical 25 mm |
Mounting Position | Position 1 7 | Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
Standards | IEC/EN 63000 IEC/EN 61000-6-2 IEC/EN 61000-6-3 IEC/EN 61204 UL 61010-2-201 UL 61010-1 IEC/EN 61010-1 | Connecting Capacity Input Circuit UL/CSA | Flexible 12-8 AWG Rigid 12-6 AWG |
Connecting Capacity Output Circuit UL/CSA | Flexible 12-8 AWG Rigid 12-6 AWG | Tightening Torque UL/CSA | Input Circuit 10.5 in·lb Output Circuit 10.5 in·lb |
Ambient Air Temperature | Operation -25 ... +70 °C Storage -40 ... +85 °C | Maximum Operating Altitude Permissible | 5000 m |
Resistance to Damp Heat acc. to IEC 60068-2-30 | Test Db: 55°C, 2 cycles | Resistance to Shock acc. to IEC 60068-2-27 | 30g 3 shocks 6 ms |
Resistance to Vibrations | ±0.15 mm 10 ... 58 Hz 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz | Object Classification Code | T |
ETIM 7 | EC002540 - DC-power supply | ETIM 8 | EC002540 - DC-power supply |
ETIM 9 | EC002540 - DC-power supply | eClass | V11.0 : 27040701 |
UNSPSC | 39121004 | Manufacturer ID | 1SVR361060R1001 |
Specifications may be subject to change without notice
