Product Model

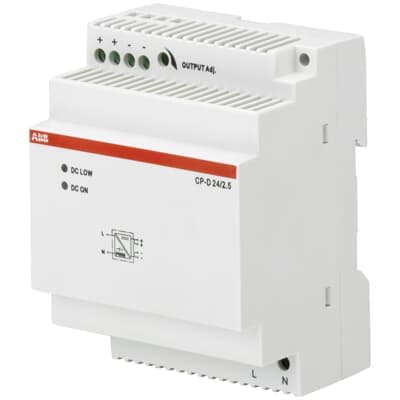

CP-D24/2.5
Selling Points
- 1Wide input range: 90-264 V AC and 120-375 V DC.
- 2Adjustable output voltage: 24-28 V DC.
- 3High efficiency: Typical efficiency of 86%.
- 4Robust design: IP20 housing and terminals, suitable for harsh environments.
- 5Versatile mounting options: Snap-on DIN rail mounting according to EN 60715.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Degree of Protection | IP20 | Data Sheet, Technical Information | 2CDC114056D0202 |
Number of Outputs | 1 | Compatible Bus Systems | KNX (TP) |
Product Range | KNX | Manual Operation | No |
Recommended Screw Driver | PH1 | Number of Batteries | 0 |
Terminal Type | Screw Terminals | Width in Number of Modular Spacings | 4.0 |
Product Net Width | 71 mm | Product Net Height | 91 mm |
Product Net Depth / Length | 57.5 mm | Product Net Weight | 0.252 kg |
Dimension Diagram | 2CDC072033F0015 | ETIM 9 | EC002540 - DC-power supply |
eClass | V11.0 : 27040701 | UNSPSC | 39121004 |
IDEA Granular Category Code (IGCC) | 4130 >> DC-power supply | Object Classification Code | A |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
Manufacturer ID | 2CDG120037R0011 |
Specifications may be subject to change without notice
