Product Model

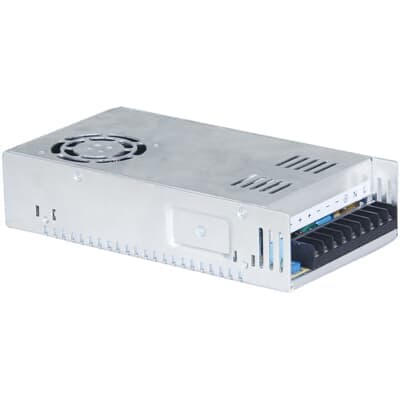

CP-PX 24/10.5
Selling Points
- 1High Efficiency: The CP-PX 24/10.5 power supply operates within a wide input voltage range (90-132/180-264VAC) and provides a stable output voltage of 24V DC.
- 2Reliable Performance: Designed with a robust construction and IP20 housing, this power supply ensures reliable operation in various industrial environments.
- 3Compliance with Standards: Meets IEC/EN 63000, EN 55024, and EN 55032 standards for safety and electromagnetic compatibility.
- 4Versatile Mounting Options: Available in a panel-mounted design with adjustable wire stripping lengths for easy installation.
- 5Cost-Effective: Offers competitive pricing with discounts available for bulk purchases, making it an economical choice for industrial power needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 50 mm | Product Net Height | 115 mm |
Product Net Depth / Length | 215 mm | Product Net Weight | 0.9 kg |
Function | Switch mode power supply | Number of Phases | 1 |
Rated Input Voltage (UIN) | 115 / 230 V AC | Input Voltage (Uin) | 90 ... 132 V AC 180 ... 264 V AC |
Hold-up Time | (230 V AC) min. 20 ms | Rated Frequency (f) | 50 / 60 Hz |
Rated Frequency Limits | 47 ... 63 Hz | Characteristic of Output | U/I characteristic curve |
Rated Output Power | 250 W | Output Power | 250 W |
Rated Output Voltage | 24 V DC | Output Voltage (Uout) | 24 V DC |
Rated Output Current | -20 °C ... +50 °C 10.5 A | Output Current | 10.5 A |
Output Current Maximum (Iout) | 10.5 A | Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Output Circuit 1.5 kV Input Circuit / PE 1.5 kV |
Degree of Protection | Housing IP20 | Pollution Degree | 2 |
Connecting Capacity Input Circuit | Rigid 0.3 ... 4 mm² | Connecting Capacity Output Circuit | Rigid 0.3 ... 4 mm² |
Tightening Torque | Input Circuit 1.2 N·m Output Circuit 1.2 N·m | Wire Stripping Length | Input Circuit 10 mm Output Circuit 10 mm |
Minimum Mounting Distance | Other Device Same Type, Horizontal 25 mm Other Device Same Type, Vertical 25 mm | Mounting on DIN Rail | No |
Standards | IEC/EN 63000 EN 55024 EN 55032 IEC 60950-1 | Ambient Air Temperature | Operation -25 ... +60 °C Storage -40 ... +85 °C |
Object Classification Code | T | ETIM 7 | EC002540 - DC-power supply |
ETIM 8 | EC002540 - DC-power supply | ETIM 9 | EC002540 - DC-power supply |
eClass | V11.0 : 27040701 | UNSPSC | 39121004 |
Manufacturer ID | 1SVR427091R0060 |
Specifications may be subject to change without notice
