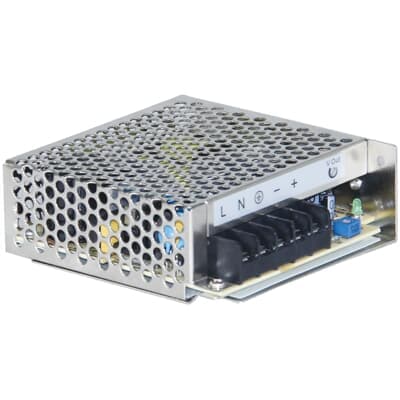

Product Model
CP-PX 24/2.2
Selling Points
- 1High Efficiency: Up to 94% efficiency ensures optimal power usage.
- 2Compact Design: Compact metal enclosure suitable for OEM machine building.
- 3Reliable Performance: Integrated 150% power reserve for five seconds.
- 4Versatile Applications: Ideal for industrial automation and various applications.
- 5Made in India: Manufactured locally for quality assurance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 35.5 mm | Product Net Height | 97 mm |
Product Net Depth / Length | 99.1 mm | Product Net Weight | 0.32 kg |
Function | Switch mode power supply | Number of Phases | 1 |
Rated Input Voltage (UIN) | 100 ... 240 V AC | Input Voltage (Uin) | 90 ... 264 V AC |
Hold-up Time | (230 V AC) min. 20 ms | Rated Frequency (f) | 50 / 60 Hz |
Rated Frequency Limits | 47 ... 63 Hz | Characteristic of Output | Hiccup-mode |
Rated Output Power | 50 W | Output Power | 50 W |
Rated Output Voltage | 24 V DC | Output Voltage (Uout) | 24 V DC |
Rated Output Current | -20 °C ... +50 °C 2.2 A | Output Current | 2.2 A |
Output Current Maximum (Iout) | 2.2 A | Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Output Circuit 1.5 kV Input Circuit / PE 1.5 kV |
Degree of Protection | Housing IP20 | Pollution Degree | 2 |
Connecting Capacity Input Circuit | Rigid 0.3 ... 4 mm² | Connecting Capacity Output Circuit | Rigid 0.3 ... 4 mm² |
Tightening Torque | Input Circuit 1.2 N·m Output Circuit 1.2 N·m | Wire Stripping Length | Input Circuit 10 mm Output Circuit 10 mm |
Minimum Mounting Distance | Other Device Same Type, Horizontal 25 mm Other Device Same Type, Vertical 25 mm | Mounting on DIN Rail | No |
Standards | IEC/EN 63000 EN 55024 EN 55032 IEC 60950-1 | Ambient Air Temperature | Operation -20 ... +70 °C Storage -40 ... +85 °C |
Object Classification Code | T | ETIM 7 | EC002540 - DC-power supply |
ETIM 8 | EC002540 - DC-power supply | ETIM 9 | EC002540 - DC-power supply |
eClass | V11.0 : 27040701 | UNSPSC | 39121004 |
Manufacturer ID | 1SVR427091R0020 |
Specifications may be subject to change without notice
