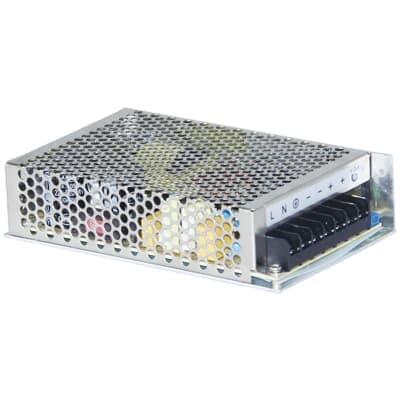

Product Model
CP-PX 24/4.5
Selling Points
- 1High efficiency with up to 93% power conversion efficiency.
- 2Wide input voltage range of 85-264 V AC and 90-300 V DC.
- 3Adjustable output voltage from 22.5 to 28.5 V DC.
- 4Integrated input fuse and overheat protection for safety.
- 5Compact design with DIN rail mounting for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 38 mm | Product Net Height | 97.5 mm |
Product Net Depth / Length | 159 mm | Product Net Weight | 0.51 kg |
Function | Switch mode power supply | Number of Phases | 1 |
Rated Input Voltage (UIN) | 115 / 230 V AC | Input Voltage (Uin) | 90 ... 132 V AC 180 ... 264 V AC |
Hold-up Time | (230 V AC) min. 20 ms | Rated Frequency (f) | 50 / 60 Hz |
Rated Frequency Limits | 47 ... 63 Hz | Characteristic of Output | Hiccup-mode |
Rated Output Power | 100 W | Output Power | 100 W |
Rated Output Voltage | 24 V DC | Output Voltage (Uout) | 24 V DC |
Rated Output Current | -20 °C ... +50 °C 4.5 A | Output Current | 4.5 A |
Output Current Maximum (Iout) | 4.5 A | Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Output Circuit 1.5 kV Input Circuit / PE 1.5 kV |
Degree of Protection | Housing IP20 | Pollution Degree | 2 |
Connecting Capacity Input Circuit | Rigid 0.3 ... 4 mm² | Connecting Capacity Output Circuit | Rigid 0.3 ... 4 mm² |
Tightening Torque | Input Circuit 1.2 N·m Output Circuit 1.2 N·m | Wire Stripping Length | Input Circuit 10 mm Output Circuit 10 mm |
Minimum Mounting Distance | Other Device Same Type, Horizontal 25 mm Other Device Same Type, Vertical 25 mm | Mounting on DIN Rail | No |
Standards | IEC/EN 63000 EN 55024 EN 55032 IEC 60950-1 | Ambient Air Temperature | Operation -20 ... +70 °C Storage -40 ... +85 °C |
Object Classification Code | T | ETIM 7 | EC002540 - DC-power supply |
ETIM 8 | EC002540 - DC-power supply | ETIM 9 | EC002540 - DC-power supply |
eClass | V11.0 : 27040701 | UNSPSC | 39121004 |
Manufacturer ID | 1SVR427091R0040 |
Specifications may be subject to change without notice
