Product Model

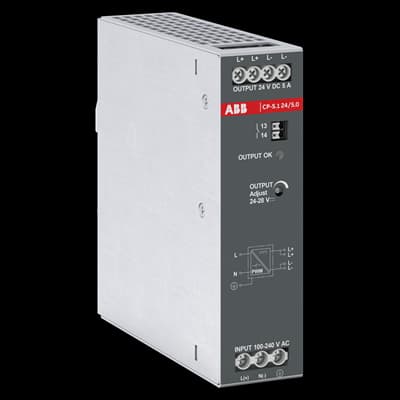

CP-S.1 24/5.0
Selling Points
- 1High Efficiency: Achieves up to 90% efficiency for optimal performance.
- 2Adjustable Output Voltage: Output voltage adjustable from 24 to 28 V DC.
- 3Power Reserve: Provides a power reserve of up to 150% for 5 seconds.
- 4Redundancy Capable: Allows parallel operation to increase capacity and enable redundancy.
- 5Wide Input Range: Compatible with 85-264 V AC and 90-277 V DC inputs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 35.5 mm | Product Net Height | 129.4 mm |
Product Net Depth / Length | 127 mm | Product Net Weight | 0.69 kg |
Function | Switch mode power supply | Number of Phases | 1 |
Rated Input Voltage (UIN) | 100 ... 240 V AC 100 ... 250 V DC | Input Voltage (Uin) | 85 ... 264 V AC 90 ... 277 V DC |
Typical Input Current | (115 V AC) 1.24 A (230 V AC) 0.67 A | Hold-up Time | (230 V AC) min. 20 ms |
Rated Frequency (f) | 50 / 60 Hz DC | Rated Frequency Limits | 45 ... 65 Hz |
Characteristic of Output | U/I characteristic curve with power reserve | Rated Output Power | 120 W |
Output Power | 120 W | Rated Output Voltage | 24 V DC |
Output Voltage (Uout) | 24 V DC | Output Current | 5 A |
Output Current Maximum (Iout) | 7.5 A | Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Output Circuit 4 kV Input Circuit / PE 4 kV Input Circuit / Relay Contact 4 kV Output Circuit / PE 0.8 kV Output Circuit 0.8 kV |
Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V Input Circuit / PE 300 V Input Circuit / Relay Contact 300 V Output Circuit / PE 50 V | Degree of Protection | Housing IP20 Terminals IP20 |
Pollution Degree | 2 | Connecting Capacity Input Circuit | Flexible with Ferrule 0.5 ... 4.0 mm² Flexible 0.5 ... 4.0 mm² Rigid 0.5 ... 4 mm² |
Connecting Capacity Output Circuit | Flexible with Ferrule 0.5 ... 4.0 mm² Flexible 0.5 ... 4.0 mm² Rigid 0.5 ... 4 mm² | Tightening Torque | Input Circuit 0.5 N·m Output Circuit 1.13 N·m |
Wire Stripping Length | Auxiliary Circuit 7 mm Input Circuit 9 mm Output Circuit 9 mm | Minimum Mounting Distance | Other Device Same Type, Horizontal 30 mm Other Device Same Type, Vertical 50 mm |
Mounting Position | 1 | Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
Connecting Capacity Input Circuit UL/CSA | Flexible with Ferrule 20-12 AWG Flexible 20-12 AWG Rigid 20-12 AWG | Connecting Capacity Output Circuit UL/CSA | Flexible with Ferrule 20-12 AWG Flexible 20-12 AWG Rigid 20-12 AWG |
Tightening Torque UL/CSA | Input Circuit 4.4 in·lb Output Circuit 4.4 in·lb | Ambient Air Temperature | Operation -25 ... +70 °C Storage -40 ... +85 °C |
Maximum Operating Altitude Permissible | 5000 m | Resistance to Damp Heat acc. to IEC 60068-2-30 | Test Db: 55°C, 2 cycles |
Resistance to Shock acc. to IEC 60068-2-27 | 30g 3 shocks 6 ms | Resistance to Vibrations | ±0.15 mm 10 ... 58 Hz 10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz |
Object Classification Code | T | ETIM 7 | EC002540 - DC-power supply |
ETIM 8 | EC002540 - DC-power supply | ETIM 9 | EC002540 - DC-power supply |
eClass | V11.0 : 27040701 | UNSPSC | 39121004 |
E-Number (Finland) | 2712887 | E-Number (Norway) | 6608901 |
E-Number (Sweden) | 5213655 | Manufacturer ID | 1SVR320561R1000 |
Specifications may be subject to change without notice
