Product Model

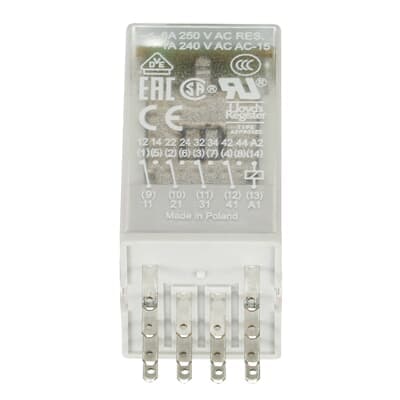

CR-M024AC4LG
Selling Points
- 1Reliable operation at 24V AC.
- 22 c/o contacts for versatile applications.
- 3Cadmium-free contact material for safety and durability.
- 4Integrated test button for manual actuation and locking of output contacts.
- 5Compact design with a width of 27 mm on the socket.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 21.2 mm | Product Net Height | 35.6 mm |
Product Net Depth / Length | 27.5 mm | Product Net Weight | 0.033 kg |
Function | Pluggable miniature interface relay CR-M | Sub-Function | Relay with built in LED and gold-plated contacts |
Rated Control Supply Voltage (Us) | 24 V AC | Rated Operational Voltage | 250 V AC |
Rated Frequency (f) | 50 / 60 Hz | Output | 4 c/o (SPDT) contacts |
Output Signal | 250 V / 6 A | Terminal Type | Flat-Pin Connections |
Rated Operational Current AC-12 (Ie) | (230 V) 6 A | Rated Operational Current AC-15 (Ie) | (120 V) 1.5 A (230 V) 1 A |
Rated Operational Current DC-12 (Ie) | (24 V) 6 A | Rated Operational Current DC-13 (Ie) | (24 V) 2 A (250 V) 0.1 A |
Rated Insulation Voltage (Ui) | 250 V | Degree of Protection | IP40 |
Mounting Position | 1 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61810-1 UL 508 |
Maximum Operating Voltage UL/CSA | 300 V AC | Contact Rating UL/CSA | B300 |
Pilot Duty UL/CSA | B300 | Flammability According to UL94 | HB |
Ambient Air Temperature | Operation -40 ... +55 °C Storage -40 ... +85 °C | Maximum Operating Altitude Permissible | Without Derating 2000 m |
Object Classification Code | K | ETIM 7 | EC001437 - Switching relay |
ETIM 8 | EC001437 - Switching relay | ETIM 9 | EC001437 - Switching relay |
eClass | V11.0 : 27371601 | UNSPSC | 39122331 |
E-Number (Finland) | 2712655 | E-Number (Norway) | 4187423 |
E-Number (Sweden) | 4005360 | Manufacturer ID | 1SVR405618R0100 |
Specifications may be subject to change without notice
