Product Model

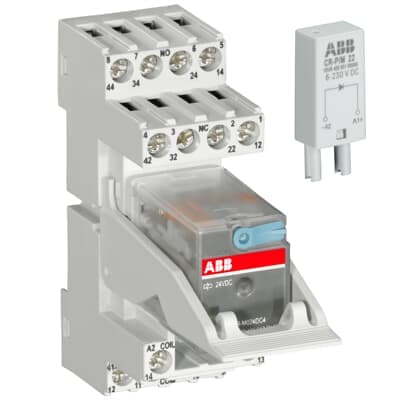

CR-M024DC4LC42
Selling Points
- 1Includes relay, socket, holder, and function module for a seamless setup.
- 2Designed to operate with a 24 V DC rated control supply voltage.
- 3Features 4 c/o (SPDT) output contacts rated at 250 V / 6 A.
- 4Equipped with an integrated LED for visual indication of relay coil energization.
- 5Suitable for DIN rail mounting, enhancing flexibility in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 31 mm | Product Net Height | 80 mm |
Product Net Depth / Length | 95 mm | Product Net Weight | 0.114 kg |
Function | Pluggable fully assembled miniature interface relay CR-M | Sub-Function | Relay with built in LED |
Rated Control Supply Voltage (Us) | 24 V DC | Output | 4 c/o (SPDT) contacts |
Output Signal | 250 V / 6 A | Terminal Type | Spring Terminals |
Degree of Protection | IP40 | Standards | IEC/EN 63000 IEC/EN 61810-1 IEC/EN 61984 |
Object Classification Code | K | ETIM 7 | EC001437 - Switching relay |
ETIM 8 | EC001437 - Switching relay | ETIM 9 | EC001437 - Switching relay |
eClass | V11.0 : 27371601 | UNSPSC | 39122331 |
Manufacturer ID | 1SVR405613R1012 |
Specifications may be subject to change without notice
