Product Model

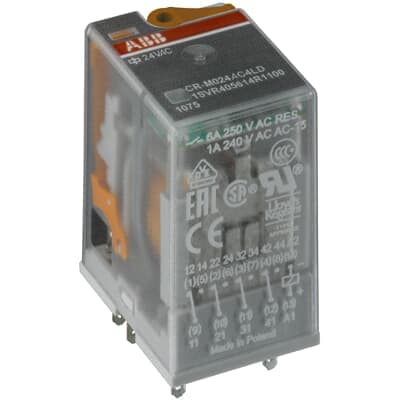

CR-M048AC4L
Selling Points
- 1Compact design with dimensions: 21.2 mm width, 35.6 mm height, and 27.5 mm depth.
- 2Operates with a 48 V AC rated control supply voltage.
- 3Features 4 c/o (SPDT) contacts rated at 250 V / 6 A for high switching capacity.
- 4Includes an integrated test button for manual actuation and locking of the output contacts.
- 5Equipped with an integrated LED for visual indication of energization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 21.2 mm | Product Net Height | 35.6 mm |
Product Net Depth / Length | 27.5 mm | Product Net Weight | 0.033 kg |
Function | Pluggable miniature interface relay CR-M | Sub-Function | Relay with built in LED |
Rated Control Supply Voltage (Us) | 48 V AC | Rated Operational Voltage | 250 V AC |
Rated Frequency (f) | 50 / 60 Hz | Output | 4 c/o (SPDT) contacts |
Output Signal | 250 V / 6 A | Terminal Type | Flat-Pin Connections |
Rated Operational Current AC-12 (Ie) | (230 V) 6 A | Rated Operational Current AC-15 (Ie) | (120 V) 1.5 A (230 V) 1 A |
Rated Operational Current DC-12 (Ie) | (24 V) 6 A | Rated Operational Current DC-13 (Ie) | (24 V) 2 A (250 V) 0.1 A |
Rated Insulation Voltage (Ui) | 250 V | Degree of Protection | IP40 |
Mounting Position | 1 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61810-1 UL 508 |
Maximum Operating Voltage UL/CSA | 300 V AC | Pilot Duty UL/CSA | B300 |
Flammability According to UL94 | HB | Ambient Air Temperature | Operation -40 ... +55 °C Storage -40 ... +85 °C |
Maximum Operating Altitude Permissible | Without Derating 2000 m | Object Classification Code | K |
ETIM 7 | EC001437 - Switching relay | ETIM 8 | EC001437 - Switching relay |
ETIM 9 | EC001437 - Switching relay | eClass | V11.0 : 27371601 |
UNSPSC | 39122331 | E-Number (Finland) | 2712668 |
E-Number (Norway) | 4187413 | Manufacturer ID | 1SVR405613R5100 |
Specifications may be subject to change without notice
