ABBIntermediate relay
Product Model

CR-M110AC3L

Manufacturer

ABB

Category

Intermediate relay

Product ID

83164

In Stock
Last updated: 2025/4/19
View Specifications

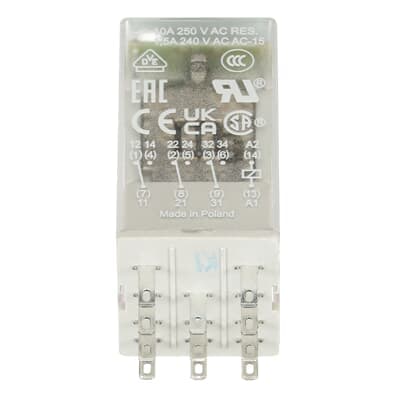

ABB CR-M110AC3L

Selling Points

  • 1Compact Design: The CR-M110AC3L is a miniature relay designed for easy plugging into ABB CR-M sockets.
  • 2High-Performance Contacts: Features 3c/o (SPDT) contacts rated at 250V/10A for reliable switching.
  • 3Integrated LED Indication: Includes an integrated orange test button and LED for manual actuation and status indication.
  • 4Versatile Applications: Suitable for various automation and control systems, including interface products.
  • 5Compliance Certificates: Meets international standards with certifications like GOST, CE, CCC, CSA, and more.
Product Details
CR-M110AC3L
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product Net Width
21.2 mm
Product Net Height
35.6 mm
Product Net Depth / Length
27.5 mm
Product Net Weight
0.033 kg
Function
Pluggable miniature interface relay CR-M
Sub-Function
Relay with built in LED
Rated Control Supply Voltage (Us)
110 V AC
Rated Operational Voltage
250 V AC
Rated Frequency (f)
50 / 60 Hz
Output
3 c/o (SPDT) contacts
Output Signal
250 V / 10 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 10 A
Rated Operational Current DC-13 (Ie)
(24 V) 2.5 A (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61810-1 UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Contact Rating UL/CSA
B300
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +55 °C Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712680
E-Number (Norway)
4187403
Manufacturer ID
1SVR405612R7100

Specifications may be subject to change without notice
