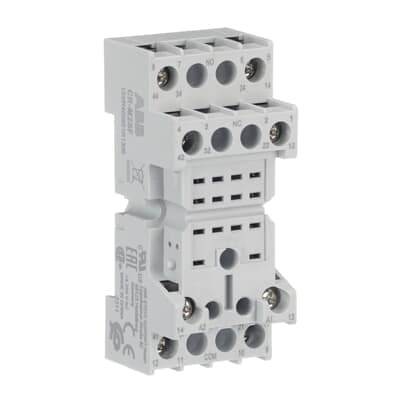

ABB CR-M2SF

Selling Points

  • 1Suitable for CR-M Relays: Compatible with 2 c/o (SPDT) output contacts.
  • 2Fork Type Connection Terminals: Easy and secure connection for miniature relays.
  • 3Pluggable Function Modules: Enhance functionality with reverse polarity protection and LED indication.
  • 4DIN Rail Mounting: Snap-on mounting for convenient installation.
  • 5Compliant with Safety Standards: Meets UL 508, CAN/CSA C22.2 No.14, and IEC/EN 61984 standards.
Product Details
CR-M2SF
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product Net Width
27 mm
Product Net Height
42.5 mm
Product Net Depth / Length
82 mm
Product Net Weight
0.04 kg
Function
Accessory for interface relays CR-M
Sub-Function
Socket for miniature relays
Sub-Function 2
Standard socket for miniature relay 2 c/o
Rated Operational Voltage
250 V
Output
none
Terminal Type
Fork Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 7 A
Rated Insulation Voltage (Ui)
4 V
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508
Connecting Capacity Main Circuit UL/CSA
Flexible with Ferrule 2x 20-16 AWG Rigid 2x 20-14 AWG Stranded 2 x 20-14 AWG
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +70 °C Storage -40 ... +70 °C
Maximum Operating Altitude Permissible
2000 m
Object Classification Code
K
ETIM 7
EC001456 - Relay socket
ETIM 8
EC001456 - Relay socket
ETIM 9
EC001456 - Relay socket
eClass
V11.0 : 27371603
UNSPSC
39122335
Manufacturer ID
1SVR405651R1300

Specifications may be subject to change without notice
