Product Model

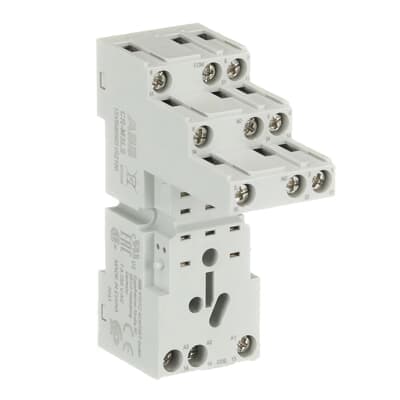

CR-M3LS
Selling Points
- 1The CR-M3LS socket is designed to be compact, measuring 27 mm in width, 61 mm in height, and 82 mm in depth.
- 2Equipped with screw connection terminals for secure and reliable connections.
- 3Operates within a wide temperature range of -40°C to +70°C and up to 2000 meters in altitude.
- 4Meets EU Directive 2011/65/EU for RoHS compliance, ensuring environmental safety.
- 5Available with pluggable function modules, holder, and marker as accessories for flexible mounting options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 27 mm | Product Net Height | 61 mm |
Product Net Depth / Length | 82 mm | Product Net Weight | 0.062 kg |
Function | Accessory for interface relays CR-M | Sub-Function | Socket for miniature relays |
Sub-Function 2 | Logical socket for miniature relay 3 c/o | Rated Operational Voltage | 250 V |
Output | none | Terminal Type | Screw Terminals |
Rated Operational Current AC-12 (Ie) | (230 V) 7 A | Rated Insulation Voltage (Ui) | 3 V |
Mounting Position | 1 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508 |
Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 20-16 AWG Rigid 2x 20-14 AWG Stranded 2 x 20-14 AWG | Flammability According to UL94 | V-0 |
Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +70 °C | Maximum Operating Altitude Permissible | 2000 m |
Object Classification Code | K | ETIM 7 | EC001456 - Relay socket |
ETIM 8 | EC001456 - Relay socket | ETIM 9 | EC001456 - Relay socket |
eClass | V11.0 : 27371603 | UNSPSC | 39122335 |
E-Number (Finland) | 2712714 | E-Number (Norway) | 4187429 |
E-Number (Sweden) | 4005373 | Manufacturer ID | 1SVR405651R2100 |
Specifications may be subject to change without notice
