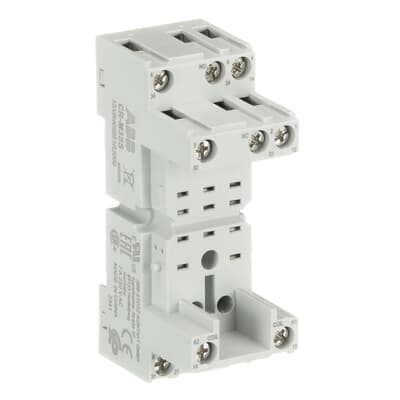

Product Model
CR-M3SS
Selling Points
- 1Compatible with CR-M Relays: Designed for use with CR-M relays, ensuring seamless integration.
- 2Screw Connection Terminals: Easy installation with screw connection terminals.
- 3Pluggable Function Modules: Enhance functionality with pluggable function modules.
- 4Compact Dimensions: Compact size (27 mm x 42.5 mm x 82 mm) for efficient use in control panels.
- 5RoHS Compliant: Meets EU Directive 2011/65/EU for environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 27 mm | Product Net Height | 42.5 mm |
Product Net Depth / Length | 82 mm | Product Net Weight | 0.068 kg |
Function | Accessory for interface relays CR-M | Sub-Function | Socket for miniature relays |
Sub-Function 2 | Standard socket for miniature relay 3 c/o | Rated Operational Voltage | 250 V |
Output | none | Terminal Type | Screw Terminals |
Rated Operational Current AC-12 (Ie) | (230 V) 7 A | Rated Insulation Voltage (Ui) | 3 V |
Mounting Position | 1 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508 |
Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 20-16 AWG Rigid 2x 20-14 AWG Stranded 2 x 20-14 AWG | Flammability According to UL94 | V-0 |
Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +70 °C | Maximum Operating Altitude Permissible | 2000 m |
Object Classification Code | K | ETIM 7 | EC001456 - Relay socket |
ETIM 8 | EC001456 - Relay socket | ETIM 9 | EC001456 - Relay socket |
eClass | V11.0 : 27371603 | UNSPSC | 39122335 |
E-Number (Finland) | 2712715 | E-Number (Norway) | 4187432 |
E-Number (Sweden) | 4005372 | Manufacturer ID | 1SVR405651R2000 |
Specifications may be subject to change without notice
