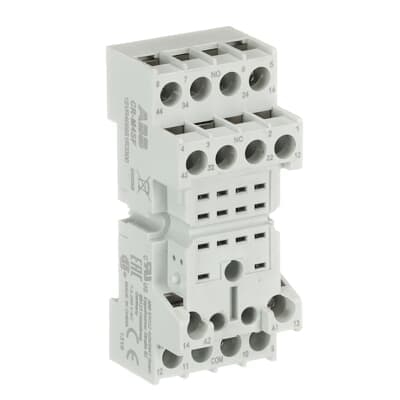

ABB CR-M4SF

Selling Points

  • 1Suitable for 2 or 4 c/o (SPDT) contacts: The CR-M4SF socket is designed to accommodate both 2 and 4 contact configurations, offering versatility in relay applications.
  • 2Fork Type Screw Terminals: Equipped with fork type screw terminals for secure and easy connections, ensuring reliable operation in various environments.
  • 3Pluggable Function Modules: Compatible with pluggable function modules, including reverse polarity protection, LED indication, and RC elements, enhancing the functionality of your relay system.
  • 4Snap-on Mounting on DIN Rail: Easy to install with snap-on mounting on DIN rail, making it convenient for integration into existing control systems.
  • 5Compliant with International Standards: Meets various international standards including UL 508, CAN/CSA C22.2 No.14, EAC, RMRS, and CE, ensuring global compatibility and safety.
Product Details
CR-M4SF
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product Net Width
22.5 mm
Product Net Height
61 mm
Product Net Depth / Length
82 mm
Product Net Weight
0.048 kg
Function
Accessory for interface relays CR-M
Sub-Function
Socket for miniature relays
Sub-Function 2
Standard socket for miniature relay 2 c/o or 4 c/o
Rated Operational Voltage
250 V
Output
none
Terminal Type
Fork Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 7 A
Rated Insulation Voltage (Ui)
4 V
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508
Connecting Capacity Main Circuit UL/CSA
Flexible with Ferrule 2x 20-16 AWG Rigid 2x 20-14 AWG Stranded 2 x 20-14 AWG
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +70 °C Storage -40 ... +70 °C
Maximum Operating Altitude Permissible
2000 m
Object Classification Code
K
ETIM 7
EC001456 - Relay socket
ETIM 8
EC001456 - Relay socket
ETIM 9
EC001456 - Relay socket
eClass
V11.0 : 27371603
UNSPSC
39122335
Manufacturer ID
1SVR405651R3300

Specifications may be subject to change without notice
