Product Model

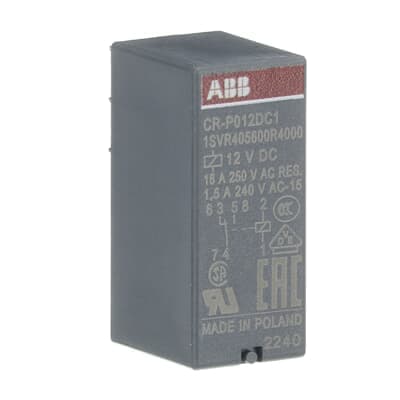

CR-P012DC1
Selling Points
- 1Compact design for space-saving in control panels.
- 2Suitable for direct PCB mounting or use with ABB sockets.
- 3Operates with a 12V DC rated control supply voltage.
- 4Features a 1 c/o (SPDT) output with contacts rated at 250V/16A.
- 5Offers IP67 protection against dust, airborne particles, and water immersion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 12.7 mm | Product Net Height | 15.7 mm |
Product Net Depth / Length | 29 mm | Product Net Weight | 0.014 kg |
Function | Pluggable pcb interface relay CR-P | Sub-Function | Relay w/o built in LED |
Rated Control Supply Voltage (Us) | 12 V DC | Rated Operational Voltage | 400 V AC |
Rated Frequency (f) | 50 / 60 Hz | Output | 1 c/o (SPDT) contact |
Output Signal | 250 V / 16 A | Terminal Type | Soldering Pins |
Rated Operational Current AC-12 (Ie) | (230 V) 16 A | Rated Operational Current AC-15 (Ie) | (120 V) 3 A (230 V) 1.5 A |
Rated Operational Current DC-12 (Ie) | (24 V) 16 A | Rated Operational Current DC-13 (Ie) | (24 V) 2.5 A (250 V) 0.1 A |
Rated Insulation Voltage (Ui) | 400 V | Degree of Protection | IP67 |
Mounting Position | 1 | Standards | IEC/EN 61810-1 |
Maximum Operating Voltage UL/CSA | 300 V AC | Pilot Duty UL/CSA | B300 |
Flammability According to UL94 | V-0 | Ambient Air Temperature | Operation -40 ... +85 °C Storage -40 ... +85 °C |
Maximum Operating Altitude Permissible | Without Derating 2000 m | Object Classification Code | K |
ETIM 7 | EC001437 - Switching relay | ETIM 8 | EC001437 - Switching relay |
ETIM 9 | EC001437 - Switching relay | eClass | V11.0 : 27371601 |
UNSPSC | 39122331 | E-Number (Finland) | 2712736 |
E-Number (Norway) | 4187328 | Manufacturer ID | 1SVR405600R4000 |
Specifications may be subject to change without notice
