Product Model

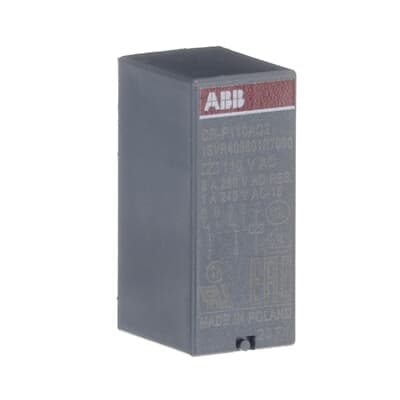

CR-P110AC2
Selling Points
- 1High-Performance Switching: The CR-P110AC2 operates with a 110 V AC rated control supply voltage and has 2 c/o (SPDT) contacts rated at 250 V / 8 A.
- 2Compact Design: Suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets, offering space-saving possibilities.
- 3Enhanced Protection: IP67 rating provides complete protection against dust and water ingress, including immersion up to one meter of water.
- 4Versatile Applications: Ideal for electrical isolation, amplification, and signal matching between electronic controlling systems and sensor/actuator levels.
- 5Compliance and Certifications: Meets EU Directive 2011/65/EU for RoHS compliance and holds various international certifications including CCC, CSA, and UR.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 12.7 mm | Product Net Height | 15.7 mm |
Product Net Depth / Length | 29 mm | Product Net Weight | 0.014 kg |
Function | Pluggable pcb interface relay CR-P | Sub-Function | Relay w/o built in LED |
Rated Control Supply Voltage (Us) | 110 V AC | Rated Operational Voltage | 400 V AC |
Output | 2 c/o (SPDT) contacts | Output Signal | 250 V / 8 A |
Terminal Type | Soldering Pins | Rated Operational Current AC-12 (Ie) | (230 V) 8 A |
Rated Operational Current AC-15 (Ie) | (120 V) 3 A (230 V) 1.5 A | Rated Operational Current DC-12 (Ie) | (24 V) 8 A |
Rated Operational Current DC-13 (Ie) | (24 V) 2 A (250 V) 0.1 A | Rated Insulation Voltage (Ui) | 400 V |
Degree of Protection | IP67 | Mounting Position | 1 |
Standards | IEC/EN 61810-1 | Maximum Operating Voltage UL/CSA | 300 V AC |
Pilot Duty UL/CSA | B300 | Flammability According to UL94 | V-0 |
Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +85 °C | Maximum Operating Altitude Permissible | Without Derating 2000 m |
Object Classification Code | K | ETIM 7 | EC001437 - Switching relay |
ETIM 8 | EC001437 - Switching relay | ETIM 9 | EC001437 - Switching relay |
eClass | V11.0 : 27371601 | UNSPSC | 39122331 |
E-Number (Finland) | 2712747 | E-Number (Norway) | 4187343 |
Manufacturer ID | 1SVR405601R7000 |
Specifications may be subject to change without notice
