Product Model

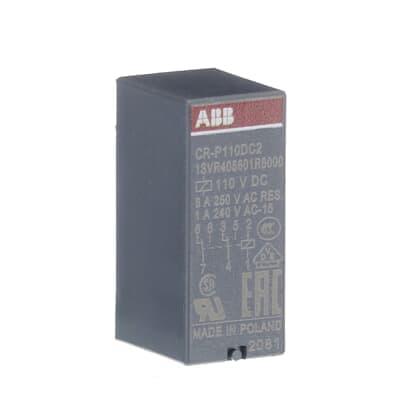

CR-P110DC2
Selling Points
- 1Operates with a 110 V DC rated control supply voltage.
- 2Features 2 c/o (SPDT) contacts rated at 250 V / 8 A.
- 3Compact design with dimensions: 12.7 mm width, 15.7 mm height, and 29 mm depth.
- 4Suitable for applications requiring electrical isolation and signal matching.
- 5Compliant with EU Directive 2011/65/EU (RoHS) and includes various certifications (CCC, CSA, cUR).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 12.7 mm | Product Net Height | 15.7 mm |
Product Net Depth / Length | 29 mm | Product Net Weight | 0.014 kg |
Function | Pluggable pcb interface relay CR-P | Sub-Function | Relay w/o built in LED |
Rated Control Supply Voltage (Us) | 110 V DC | Rated Operational Voltage | 400 V AC |
Rated Frequency (f) | 50 / 60 Hz | Output | 2 c/o (SPDT) contacts |
Output Signal | 250 V / 8 A | Terminal Type | Soldering Pins |
Rated Operational Current AC-12 (Ie) | (230 V) 8 A | Rated Operational Current AC-15 (Ie) | (120 V) 3 A (230 V) 1.5 A |
Rated Operational Current DC-12 (Ie) | (24 V) 8 A | Rated Operational Current DC-13 (Ie) | (24 V) 2 A (250 V) 0.1 A |
Rated Insulation Voltage (Ui) | 400 V | Degree of Protection | IP67 |
Mounting Position | 1 | Standards | IEC/EN 61810-1 |
Maximum Operating Voltage UL/CSA | 300 V AC | Contact Rating UL/CSA | B300 |
Pilot Duty UL/CSA | B300 | Flammability According to UL94 | V-0 |
Ambient Air Temperature | Operation -40 ... +85 °C Storage -40 ... +85 °C | Maximum Operating Altitude Permissible | Without Derating 2000 m |
Object Classification Code | K | ETIM 7 | EC001437 - Switching relay |
ETIM 8 | EC001437 - Switching relay | ETIM 9 | EC001437 - Switching relay |
eClass | V11.0 : 27371601 | UNSPSC | 39122331 |
E-Number (Finland) | 2712749 | E-Number (Norway) | 4187340 |
Manufacturer ID | 1SVR405601R8000 |
Specifications may be subject to change without notice
