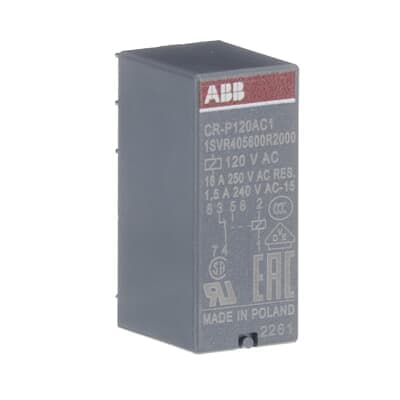

ABB CR-P120AC1

Selling Points

  • 1The CR-P120AC1 is designed for space-saving installations, perfect for control panels.
  • 2Operates with a 120 V AC rated control supply voltage, ensuring reliable performance.
  • 3Offers complete protection against dust and water ingress, up to immersion in one meter of water.
  • 4Suitable for direct mounting on PCBs or use with ABB's sockets for flexible installation.
  • 5Includes standard sockets, logic sockets, pluggable function modules, holder, and marker for added functionality.
Product Details
CR-P120AC1
ABB

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product Net Width
12.7 mm
Product Net Height
15.7 mm
Product Net Depth / Length
29 mm
Product Net Weight
0.014 kg
Function
Pluggable pcb interface relay CR-P
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
120 V AC
Rated Operational Voltage
400 V AC
Output
1 c/o (SPDT) contact
Output Signal
250 V / 16 A
Terminal Type
Soldering Pins
Rated Operational Current AC-12 (Ie)
(230 V) 16 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 16 A
Rated Operational Current DC-13 (Ie)
(24 V) 2.5 A (250 V) 0.1 A
Rated Insulation Voltage (Ui)
400 V
Degree of Protection
IP67
Mounting Position
1
Standards
IEC/EN 61810-1
Maximum Operating Voltage UL/CSA
300 V AC
Contact Rating UL/CSA
B300
Pilot Duty UL/CSA
B300
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +70 °C Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712750
E-Number (Norway)
4187335
Manufacturer ID
1SVR405600R2000
