Product Model

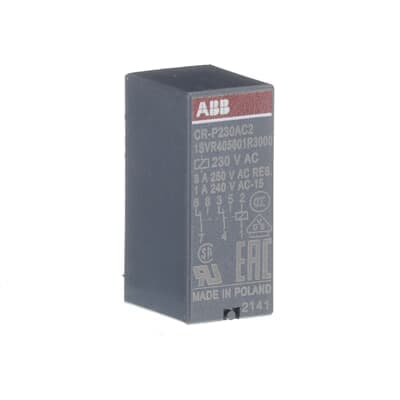

CR-P230AC2
Selling Points
- 1Compact Design: Ideal for PCB mounting with a compact size.
- 2High-Performance Contacts: 2 c/o (SPDT) contacts rated at 250V/8A.
- 3Durable Protection: IP67 protection against dust, airborne particles, and water immersion.
- 4Versatile Compatibility: Suitable for logical and standard sockets.
- 5Reliable Operation: Operates at 230VAC with a wide range of environmental conditions (-40°C to +70°C).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 12.7 mm | Product Net Height | 15.7 mm |
Product Net Depth / Length | 29 mm | Product Net Weight | 0.014 kg |
Function | Pluggable pcb interface relay CR-P | Sub-Function | Relay w/o built in LED |
Rated Control Supply Voltage (Us) | 230 V AC | Rated Operational Voltage | 400 V AC |
Output | 2 c/o (SPDT) contacts | Output Signal | 250 V / 8 A |
Terminal Type | Soldering Pins | Rated Operational Current AC-12 (Ie) | (230 V) 8 A |
Rated Operational Current AC-15 (Ie) | (120 V) 3 A (230 V) 1.5 A | Rated Operational Current DC-12 (Ie) | (24 V) 8 A |
Rated Operational Current DC-13 (Ie) | (24 V) 2 A (250 V) 0.1 A | Rated Insulation Voltage (Ui) | 400 V |
Degree of Protection | IP67 | Mounting Position | 1 |
Standards | IEC/EN 61810-1 | Maximum Operating Voltage UL/CSA | 300 V AC |
Contact Rating UL/CSA | B300 | Pilot Duty UL/CSA | B300 |
Flammability According to UL94 | V-0 | Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +85 °C |
Maximum Operating Altitude Permissible | Without Derating 2000 m | Object Classification Code | K |
ETIM 7 | EC001437 - Switching relay | ETIM 8 | EC001437 - Switching relay |
ETIM 9 | EC001437 - Switching relay | eClass | V11.0 : 27371601 |
UNSPSC | 39122331 | E-Number (Finland) | 2712753 |
E-Number (Norway) | 4187345 | E-Number (Sweden) | 4005310 |
Manufacturer ID | 1SVR405601R3000 |
