Product Model
CR-PJ
Selling Points

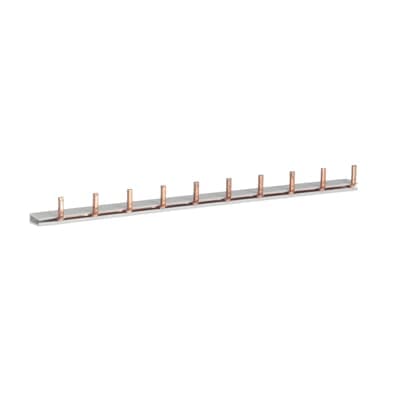

- 1Connects up to 10 CR-P range sockets with screw connection.
- 2Suitable for all CR-P sockets, enhancing versatility in relay configurations.
- 3Meets CE and EAC certification standards for safety and compliance.
- 4Constructed with E-Cu-F25 material for durability and resistance to environmental factors.
- 5Compatible with various control supply voltages, including DC and AC options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 150 mm | Product Net Height | 11 mm |
Product Net Depth / Length | 11 mm | Product Net Weight | 0.018 kg |
Function | Accessory for interface relays CR-P | Sub-Function | Jumper bar for PCB relay sockets with screw connection |
Output | none | Output Signal | none |
Standards | IEC/EN 63000 IEC/EN 61984 | Object Classification Code | W |
ETIM 7 | EC002586 - Accessories for switching relay | ETIM 8 | EC002586 - Accessories/spare parts for switching relay |
ETIM 9 | EC002586 - Accessories/spare parts for switching relay | eClass | V11.0 : 27371692 |
UNSPSC | 39121426 | E-Number (Norway) | 4187794 |
Manufacturer ID | 1SVR405658R5000 |
Specifications may be subject to change without notice
