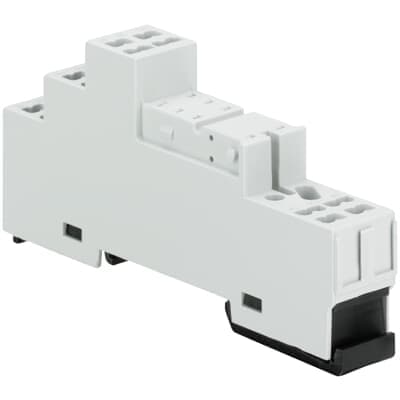

Product Model
CR-PLC
Selling Points
- 1Suitable for CR-P relays with 1 or 2 c/o contacts.
- 2Spring connection terminals for secure and reliable connections.
- 3Compliant with international standards (CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61984, UL 508).
- 4Operates within a wide ambient air temperature range (-40°C to +70°C).
- 5Available in a compact design with a net weight of 0.042 kg.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 16 mm | Product Net Height | 45.2 mm |
Product Net Depth / Length | 97 mm | Product Net Weight | 0.042 kg |
Function | Accessory for interface relays CR-P | Sub-Function | Socket for PCB relays |
Sub-Function 2 | Logical socket for pcb relay 1 c/o or 2 c/o | Rated Operational Voltage | 250 V |
Output | none | Terminal Type | Spring Terminals |
Rated Operational Current AC-12 (Ie) | (230 V) 2 A | Rated Insulation Voltage (Ui) | 5 V |
Mounting Position | 1 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508 |
Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 16 AWG Rigid 2x 24-16 AWG Stranded 2 x 24-16 AWG | Flammability According to UL94 | V-0 |
Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +70 °C | Maximum Operating Altitude Permissible | 2000 m |
Object Classification Code | K | ETIM 7 | EC001456 - Relay socket |
ETIM 8 | EC001456 - Relay socket | ETIM 9 | EC001456 - Relay socket |
eClass | V11.0 : 27371603 | UNSPSC | 39122335 |
E-Number (Norway) | 4187349 | Manufacturer ID | 1SVR405650R0200 |
Specifications may be subject to change without notice
