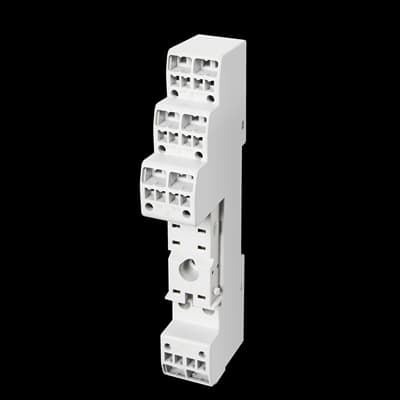

Product Model
CR-PLP
Selling Points
- 1Tool-free mounting: Install cables without specialized tools, saving up to 50% of installation time.
- 2Vibration & shock proof: Ensure secure connections even in applications with high vibration and shock.
- 3IP67 rating: Suitable for harsh environments with excellent protection against dust and water.
- 4Logical sockets: Compatible with 1 or 2 c/o CR-P relays, offering flexibility in your electrical control systems.
- 5Robust design: Maintain high uptime with a robust design that guarantees excellent contact security.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 15.8 mm | Product Net Height | 98.4 mm |
Product Net Depth / Length | 42.5 mm | Product Net Weight | 0.036 kg |
Function | Accessory for interface relays CR-P | Sub-Function | Socket for PCB relays |
Sub-Function 2 | Standard socket for pcb relay 1 c/o or 2 c/o | Rated Operational Voltage | 250 V |
Output Signal | 250 V / 10 A | Terminal Type | Push-in Spring Terminals |
Rated Insulation Voltage (Ui) | 2000 V | Wire Stripping Length | 10 mm |
Recommended Screw Driver | 2.5 | Mounting Position | 1 |
Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508 | Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 20-17 AWG Rigid 2x 20-16 AWG Stranded 2 x 20-16 AWG |
Flammability According to UL94 | V-0 | Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +70 °C |
Maximum Operating Altitude Permissible | 2000 m | Object Classification Code | K |
ETIM 7 | EC001456 - Relay socket | ETIM 8 | EC001456 - Relay socket |
ETIM 9 | EC001456 - Relay socket | eClass | V11.0 : 27371603 |
UNSPSC | 39122335 | E-Number (Norway) | 4187814 |
Manufacturer ID | 1SVR405650R0310 |
Specifications may be subject to change without notice
